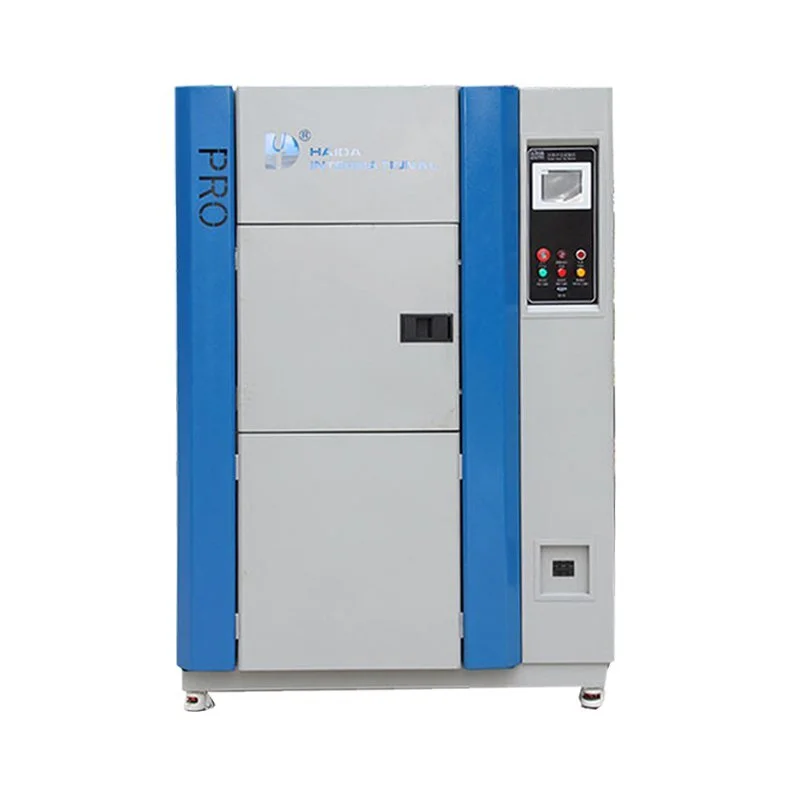

Temperature Cycle Test Chamber

Programmable Temperature Cycle Test Chamber

Temperature cycle test chamber can do high temperature and extremely low temperature environment in the shortest time to temperature cycle test by the programmable controller.the temperature test chamber have 3 zone temperature chamber:high temperature chamber,low temperature chamber,test chamber.

Application:

Temperature cycle test chamber is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality. It meets the standard of MTL, IEC, JIS, GJB…

Main parameters:

High low temperature:

HAIDA temperature cycle test chamber is equipped with the late heater and cooler.The heater can Provide the temperature of the high temperature chamber at 0℃ up to 100 ℃ in about 10 minutes.and the cooler can reduce the temperature of low temperature chamber to -60 ℃ by air cooling ways.

High and low temperature cycle test:

Chamber with vertical 3 zone test structure, pneumatic damper switch 3 box-type test mode, high and low temperature impact temperature recovery time in 5 minutes.programmable temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.

Programmable controller:

Operate interface: 6" color LCD touch screen

Program memory capacity: 100 groups (modify by operator)

Setting range: Time: 1 minute ~ 99 hour 59 minute, cycles: 1~ 999 cycles

Resolution: temperature: 0.01 ℃; time: 1 minute

Input: T thermocouple

Control method: P.I.D control

Safety devices:

Leakage and breaker, over temperature, low temperature protect device, exhaust valves, sample power control terminal, over temperature protection of high and low chamber, compressor over pressure, over heat protection, out of water relay, heat relay of fan, compressed air pressure switch, fuse, external alarm terminal




Additional functions:

Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time

Circulated cooling water: pressure: 0.2～0.4MPa, temperature: ≤30℃

Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.

Drive device:

Pneumatic cylinder: Drive the air door of high, environmental, low temperature

Air compressor: Provide the compressed air for driving pneumatic door (supplied by buyer)

Refrigerating device:

Cooling method: mechanical compression refrigeration

Refrigeration compressor:  Semi-closed piston

Refrigerant: R23/R404A

Condensation: Stainless steel welded plate heat exchanger
