Sponge indentation hardness testing machine
Sponge indentation hardness tester Description:
Sponge indentation hardness testing machine is also known as sponge, foam indentation hardness testing machine, tensile metallic and non-metallic, polymer materials, compression, bending, detection of low cycle fatigue and other projects can be according to customer product requirements according to GB, ISO, ASTM, JIS, EN and other standards for the preparation, to automatically strike the biggest test, fracture strength, yield strength, tensile strength, compressive strength, flexural strength, elastic modulus, elongation , constant elongation stress, elongation and other parameters given stress.
Measurement principle:
The sample is placed between the upper and lower platen, the pressure plate at a predetermined speed compression specimens down to a certain size when national standards concavity A method (B method, C Act) as required, on which the load cell to sense the pressure back to the computer processing and display, so the measured pressure sponge, foam and other materials such as depression sample hardness.
Technical parameters:
Control | computer control |
Display | computer display |
Induction method | 200kg |
Unit switch | Kg, N, LB |
The pressure plate | Diameter 200mm, bottom fillet R1mm |
The following platforms | 420 × 420mm, holes diameter 6mm, spacing 20mm |
Test speed | 100 ± 20mm/min; Power Source |
Transmission | precision screw |
Power supply | single-phase, 220V, 50Hz/60Hz, 2.5A |
Weight | 160kg |
Design Standards:
GB/T10807-2006

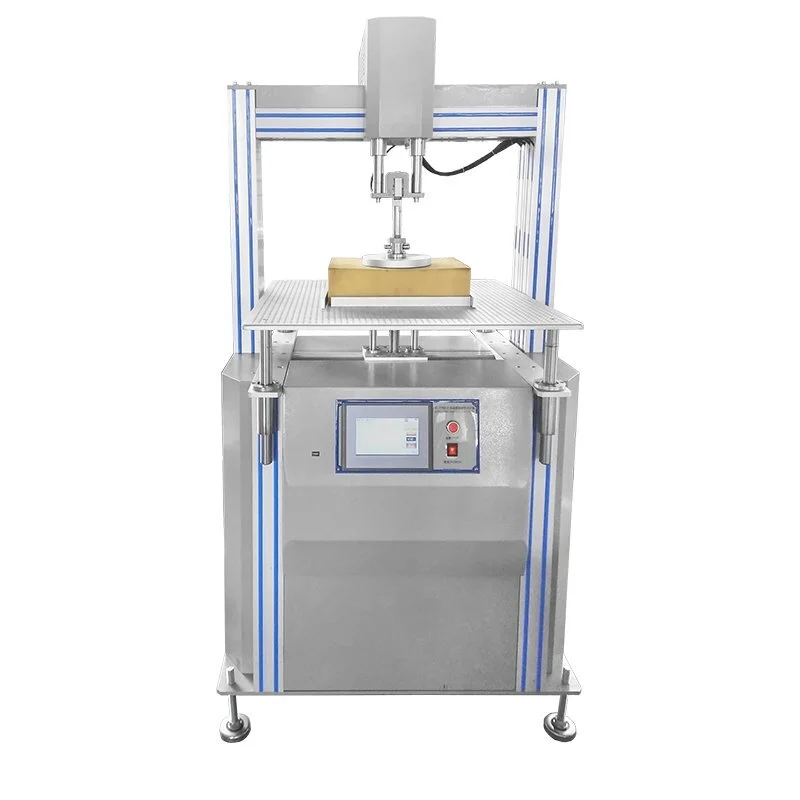

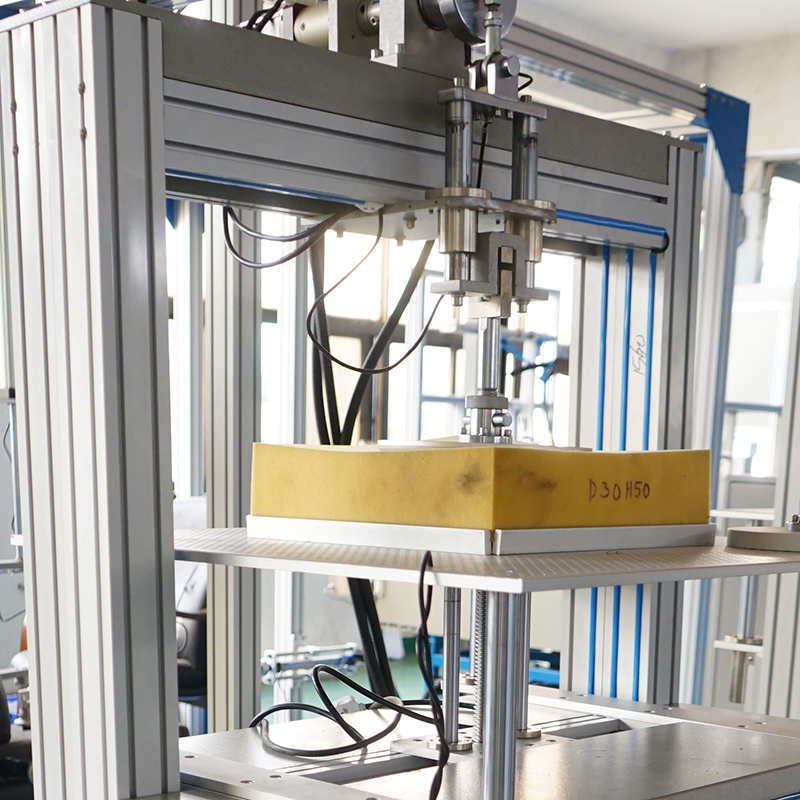

Sponge indentation hardness testing machine image
