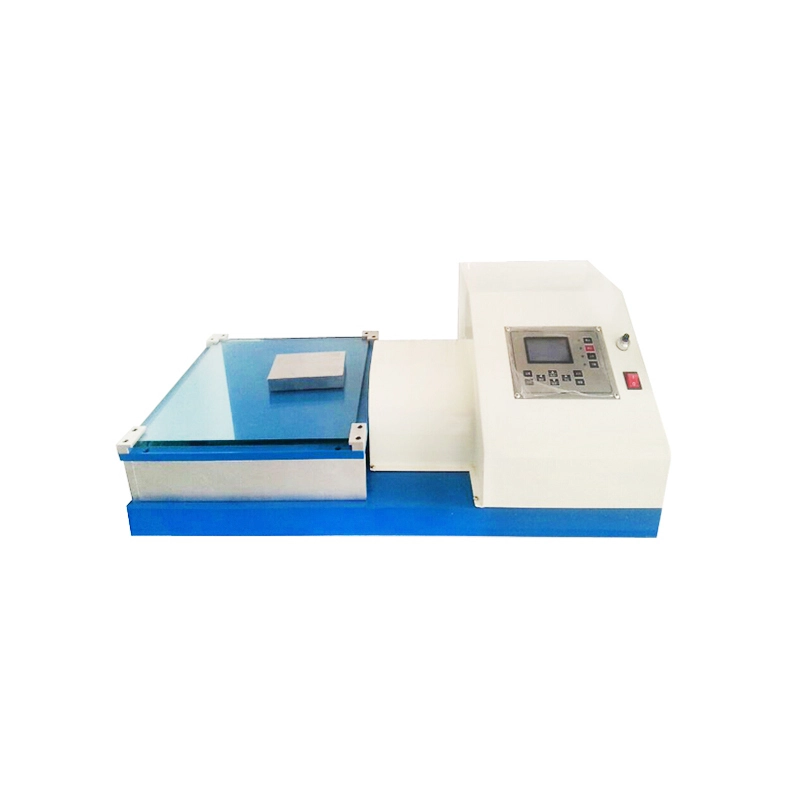

SOLE ANTI SLIP TEST MACHINE
SOLE ANTI SLIP TEST MACHINE
PRODUCT DISCRIPTION
The machine is measuring the slip index of footwear sole, heel or related materials on dry walkway surfaces in the laboratory and in the field. The horizontal pull slipmeter is a laboratory and field instrument designed to provide information about the slip index characteristics between walkway surfaces and a test foot material under dry conditions only.
Test Principle: Put the sample on the standard friction board (float glass) and add the weights on its surface. Then pull the sample horizontally and get the maximum force and static friction coefficient
STANDARD: ASTM F609
STANDARD FEATURES
Capacity | 25kg |
Unit switch | Kg,N,LB |
Load resolution | 1/1000 |
Load accuracy | 0.01Kg |
Sample size | Ø 12.7mm or 70x45mm |
Test speed | (100±10)mm/min or (400±40)mm/min |
Stroke | 300mm |
Friction board | 380x380x8mm |
Friction medium | Float glass (mirror gloss is 4) |
Fixture size | Length:(150±0.2)mm Width:(100±0.2)mm |
Fixture weight | 2700±34g |
Machine size | 1000x460x320mm |
Weight | 86KG |
Power | AC220V,5A |
