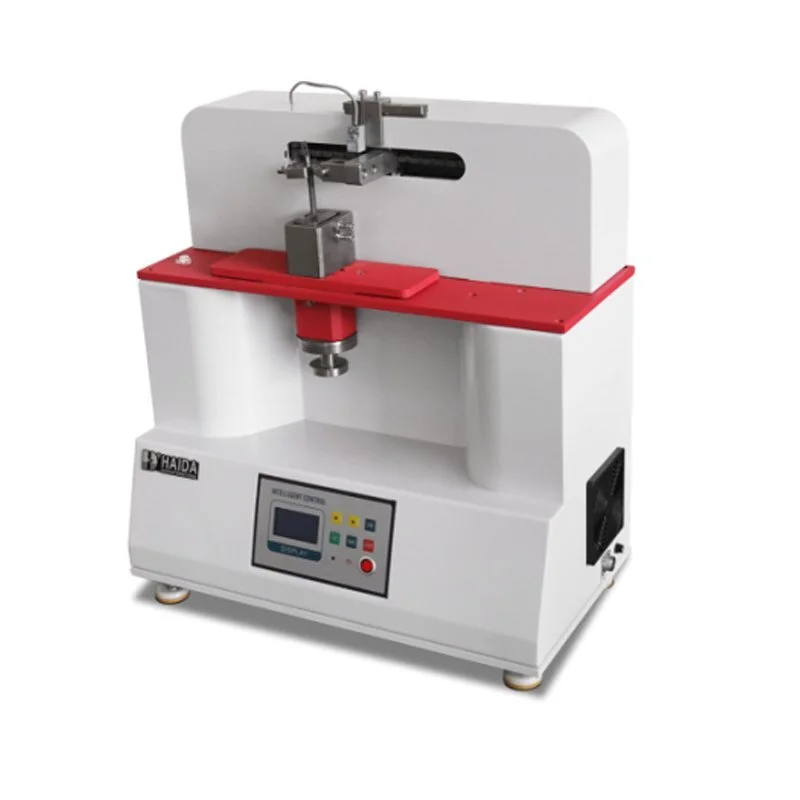

Shoe Steel Shank Fatigue Resistance Tester

Application

This shoe steel shank fatigue resistance tester is used to determine the fatigue-resistant characters for the steel shank in shoe, fix two ends of the steel shank and exert the specified load on the upper grip to have the shank bend reciprocally at 4 cycles per minute after reaching the specified test numbers check its damage degree.

Standard

GB/T 3903.35

Standard Features

Speed	0~300 times/min
Cycle applied force to sample	5.0±0.2kg
Distance between upper & down clamp	7.0±0.1mm
Counter	LCD, 0~999,999
Weight	Approx. 90kg
Power	1 phase, AV 220V, 50/60HZ
Size (WDH)	503040cm
