Description: RoHS 2.0 Directive

On June 4, 2015, the European Union issued a directive (EU) in its official gazette 2015/863 to amend RoHS2.0 (2011/65 / EU) Appendix II, and officially revised the four phthalates (DEHP, BBP, DBP, DIBP) are listed in Appendix II of RoHS2.0. As of December 31, 2016, EU member states must translate this directive into national regulations and implement them. The limits of the four new phthalates are all 0.1% (1000 ppm). The difference from the four priority evaluation substances proposed earlier is the deletion of hexabromocyclododecane (HBCDD) and the addition of DIBP as Regulated substances.

In addition to meeting the Ortho-benzene detection requirements of RoHS2.0, it can also expand TOTM (trioctyl trimellitate), DMF (dimethylformamide), benzene series (benzene, toluene, xylene), and 17 kinds of inks VOCs, organic solvent residues, polymer materials, volatile organic compounds in materials and other testing items, with powerful functions in one machine.

Testing principle：

The thermal cracking method is to place the solid sample in a thermal cracking device, which is heated to 350 degrees in a nitrogen-filled environment, then the phthalate ester will undergo a physical reaction, changing from a solid state to a gas state, and then, We calculated the content of gaseous phthalates by means of a gas chromatograph.

Advantage:

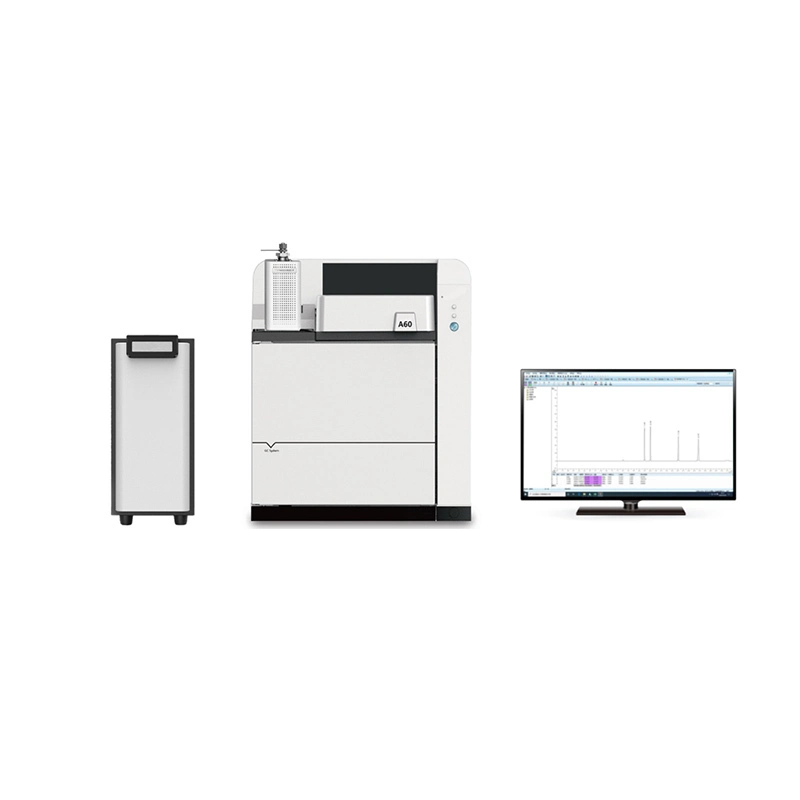

The HD-G862 ROHS 2.0 Directive solution has the following advantages:

1> Short sample preparation time:

20 minutes/sample preparation time fully meets the needs of enterprise users for rapid screening;

2> Does not produce waste gas waste liquid:
   This does not require reagents, no pre-treatment, no waste gas waste liquid;

3> Direct injection, no pre-treatment:

Direct solid or liquid injection, no pre-treatment;

4> Built-in standard curve:

More intuitive to determine whether the material is too high in the benzene (exclusive technology);

5> No need for a professional laboratory environment:

Only need ordinary operating space with air conditioning power supply can be installed and used.

Application：

> Large Household Appliances (such as : Air conditioner, TV, Refrigerator, etc.)

> Small Household Appliances (Such as : Kettles, Sweeping Robots, Electric Fans, etc.)

> IT & Communication Products (Such as: Computers, 4/5G Base Stations, Antennas, Communication Equipment, etc.);

> Consumer Electronic & Electrical Products (Sush as: Game Consoles, Mobile Phones, Cameras, Consumer Drones, etc.);

> Lighting Products (Such as: Civil Lamps, Street Lamps, Car Lamps, etc.);

> Electronic & Electrical Tools (Such as: Power Tools, Motors, Servo Motors, etc.);

> Toys, Leisure & Sports Products (Such as: Children's Toys, Bicycles, Children's Walkers, etc.);

> Vending Machines, Medical Equipment, etc.;

Technical Parameters：

Testing Graph:

Component name and retention time:
