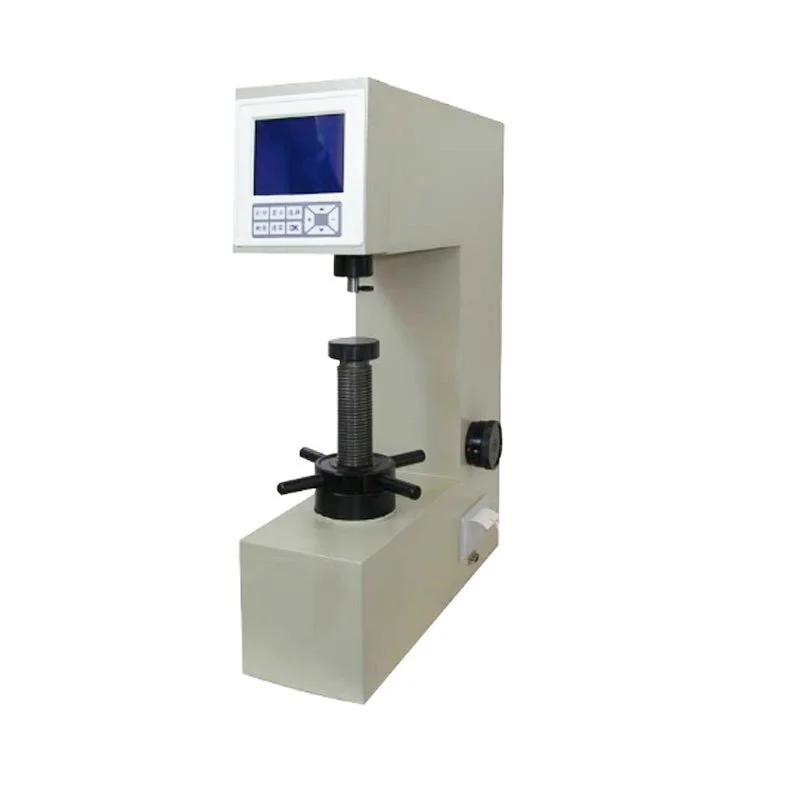

Rockwell Hardness Tester
Introduction:
This rockwell hardness tester is used to test the Rockwell hardness of special metal in wide range & simple operation.
Tested Material:
Hardened steel, the tempering steel, steel, steel rolling, annealing cold malleable iron, aluminum alloy, copper and so on.
Standard Features:
|
Type |
HD-HRS-150 |
|
Measuring range |
20-88HRA, 20-100HRB, 20-70HRC |
|
Test force |
588, 980, 1471N (60, 100, 150kgf) |
|
Max. height of test piece |
165mm |
|
Distance from indenter to outer wall |
160mm |
|
Rockwell scaleplate |
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK |
|
Hardness measuring range |
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 |
|
HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
|
|
Initial force |
1000kgf (98.07N) |
|
Dimensions |
466 x 238 x630mm |
|
Weight |
Approx. 70kg |
|
Accessories |
Large flat anvil: 1 pc. Small flat anvil: 1 pc. V-notch anvil: 1 pc. Diamond cone indenter: 1 pc. 1/16" steel ball indenter: 1 pc. Rockwell standardized block: 5pcs. |
