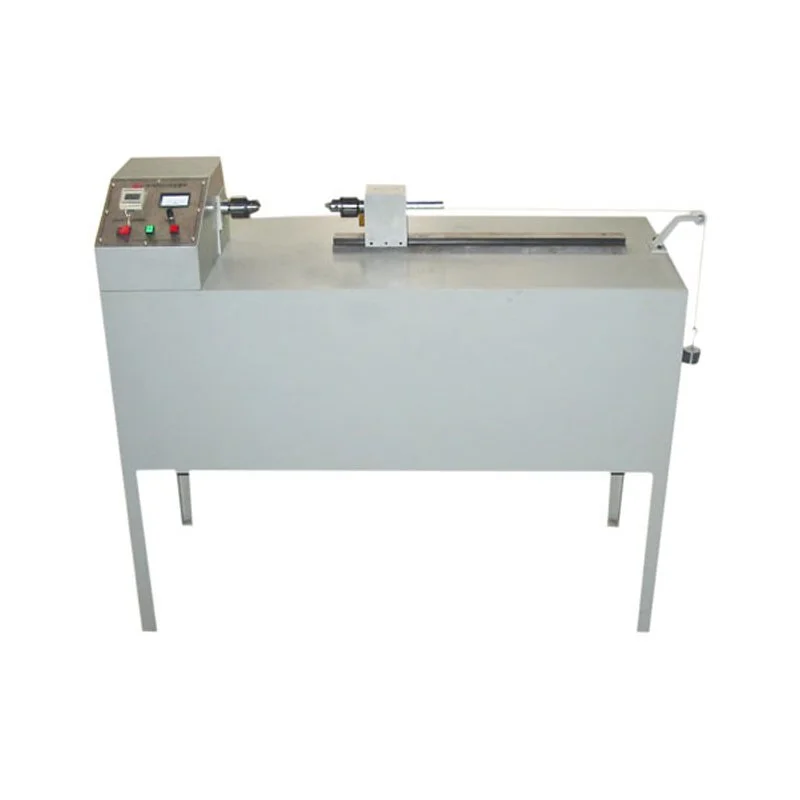

Wire Torsion Testing Machine

Product Introduction Of Wire Torsion Testing Machine:

The film the machine specially test of various kinds of metal wireenameled wire break strength and the resistance to twist number.Test method for the sample is clamped at both ends, one end is fixedon the other end is continuous 360 degree rotation exercise reversed torsion. To break or sample film enameled off, the exposed conductor,record its resistance to twist number.

Application Of Wire Torsion Testing Machine :

Wire torsion testing machine applies to determine the ability of diameter(or feature size) of 0.1-20.0 mm wire for bearing plastic deformation in one way or two way reverse, display the surface and internal defects of the wire .

Features Of Wire Torsion Testing Machine :

1. Torsion in one direction, the sample rotates 360 degrees around their own axis to a direction as a reverse to stipulate number or the sample is broken.

 2. Torsion in two direction, the sample rotate 360 degrees around their own axis as a reverseto stipulate number,then rotation frequency or the same sample split to the opposite direction.

Main technical parameters Of Wire Torsion Testing Machine :

HP: AC60W

Fixture spacing: 0~500mm

Counter: LCD, 0~999999

Speed: 0~60r.pm adjustable (below on the right of typesetting)

Machine dimensions: (L * W * H) 120 x 52 x 116Cm

Weight: 150kg

Power supply: 1,, AC220V/50HZ
