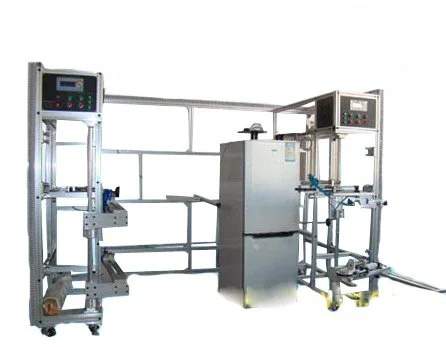

Vertical Refrigerator Door Fatigue Testing Instrument
Vertical Refrigerator Door Fatigue Testing Instrument
1、use
This tester is used for testing the switching ability of cabinet door , the retractable connecting rod does rectilinear motion back and forth , which is the same as the motion of cabinet door switching and drawer being pulling and pushing . And it is easy to operate and convenient to control . From the test result , we can know the quality of specimen
2、Design criteria
ISO15502-2005、GB/T8059-1995、IEC60335 etc .
3、 main technical parameters
Status of refrigerator : at room temperature 16～30°and disconnecting to power
Opening angle of refrigerator door : 45°
Requirement of cycle of cabinet opening : 20-30times/min ( Refrigerator door opening and closing for a cycle )
Special requirement：it can be set to open 1 time/1-60min , and the opening time is 8～12s/time and adjustable . The maximum times of door opening can not be less than 990 thousand times .
Height of refrigerator door : the height of different doors is different , and the height of rocker arm can be adjusted for testing .
The direction of refrigerator door opening：left side and right side both work , and it suits for double door refrigerators .
Structure of refrigerator door：it can fulfill the testing requirements of drawer type front and rear door .
Maximum dimension of refrigerator : 2400mm X 1200mm X 850mm
Overall dimension : 2800mm×1910mm×1600mm
Weight : 300KG
Power supply : AC220V±10%，50HZ
4、note
Do not use this tester in below condition :
vibration and swing
Direct sunlight
High temperature , dusty , moist
Make sure the AC power outlet grounding
Forbid to use strong solvent ( for example , benzene , nitro oil ) to clean the outside surface of refrigerator .
Do not fill any water and sundries into the refrigerator to prevent the circuit elements from damaging and getting an electrical shock .
The manufacturer and the units which are approved by the National Metrology Department are responsible for dismantling and adjusting the display , other people can not dismantle it without any permission .
refrigerator door tester is designed by the national laws and regulations and the relevant standards and it is the main mean to check the quality and function of freezer door ,
Refrigerator door test plays an technical role in the refrigerator product quality safety evaluation , market regulation and product trade . And it can guarantee the refrigerator product quality safety , improve the overall level of refrigerator industry .
Refrigerator door testing units test the specimen through the use of scientific testing methods and precious equipments , and then get a accurate quality inspection results , and then report to enterprises .
Then enterprises find the unqualified products according to the testing results , and analyze the quality problems and then get a solution . Through this inspection , feedback , correct process , promote the enterprises to improve product quality .
