Touch Screen Suitcase Vibration Impact Machine HD-114A
Specifications
Shock And Vibration Tester is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines
The usage
Leather Case Oscillation Impact Tester is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines and the whole structure of luggages. The testing methods are as follows: First, Load the object with stated load weight. And then do the test to the specimen with the speed of 30 times per minute and the impact height of 4 inches for 2500 times. The tset result can be taken into consideration of quality improvement.
The main technical parameters:
Shock And Vibration Tester For Leather Case er | |
Mode | HD-114 |
Impact Height | 4 inch (0~6 inches) adjustable |
Oscillation Mode | Spring type: 1.79Kg/mm |
Testing Speed | 5~30 C.P.M. adjustable |
Times Setting | 1~999999 Automatic shutdown |
Additional Fucnction | It would stop automatically if something goes wrong. |
Dimension | 1400×1200×2500 mm |
Weight | 390 Kg |
Power | 1, 220V/50Hz |
Design criteria | QB/T2922-2007 |

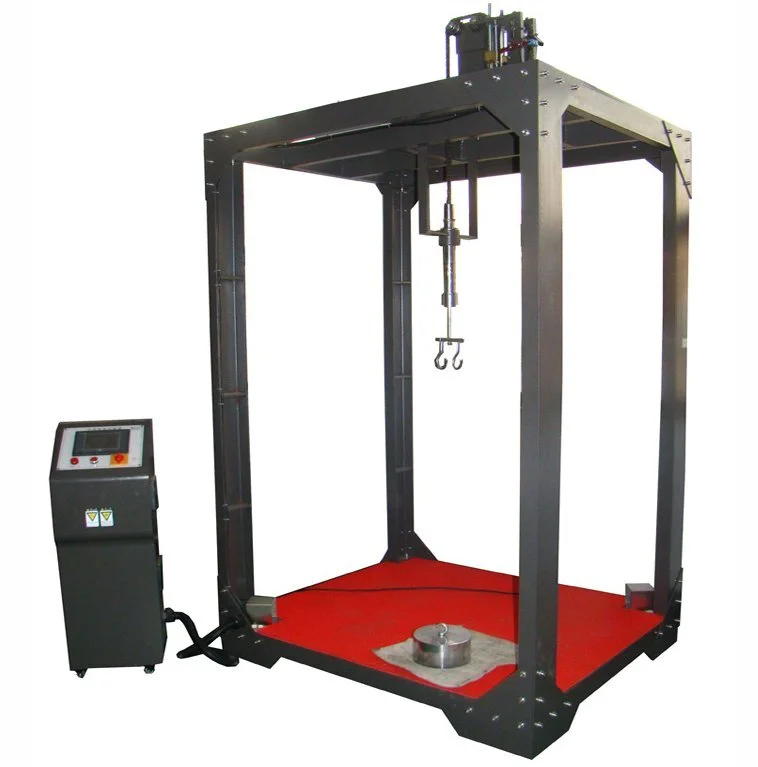

The images of this machine
Shock And Vibration Tester For Leather Case
