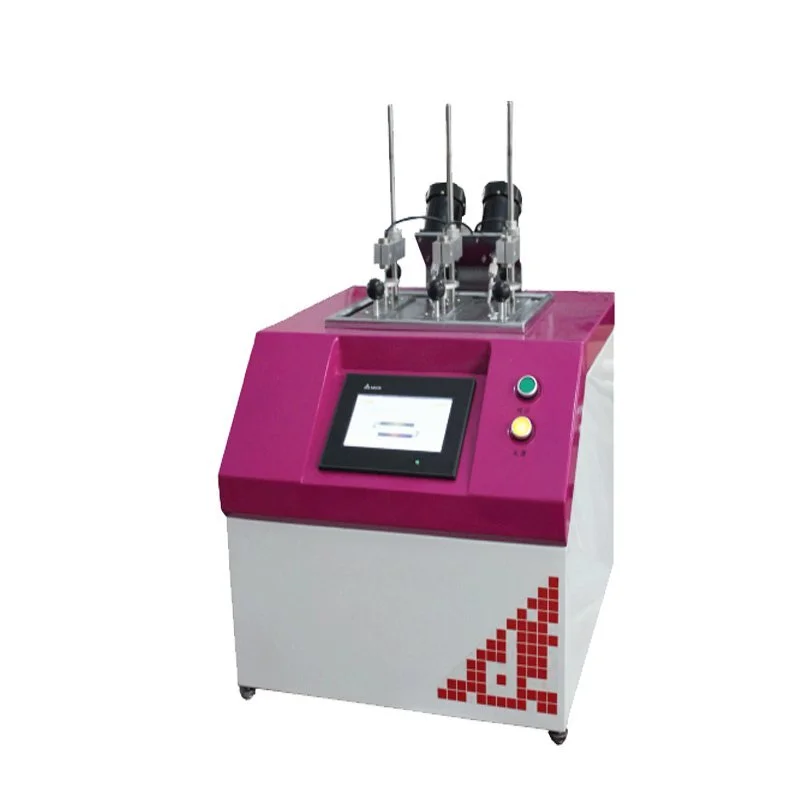

thermal deformation Vicat softening point temperature tester HD-R801-1

thermal deformation Vicat softening point temperature tester

Functions and applications:

thermal deformation Vicat softening point temperature tester is mainly applied to thermal deformation temperature and Vicat softening point temperature determination of plastic, hard rubber, nylon, electrical insulating material, fibre reinforced composite, high strength thermosetting laminated material and other nonmetal materials. It has the advantages of high intelligence, easy operation and high accuracy and it is widely applied to universities and colleges, R&D institution and quality supervision and inspection unit. This machine is CE certified and has a good sale in many countries in Europe and America.

The main function:
thermal deformation Vicat softening point temperature tester adopts advanced microelectronics and computer control technology, automation, and procedures of the advantages of having a product testing process. While still achieving the number keyboard input, data processing, CRT display color curve, having a large capacity data storage and mapping and reporting single printing function.

Working standard:

Meet the standard requirements  such as GB/T 1633、GB/T 8802、GB/T 1634、ISO 2507、ISO 75、ISO 306、ASTMD 1525,ASTMD 648and so on.

Product performance:

1）It adopts PC to control, displacement sensor to measure deformation and draw rear time curve;

2）Do the second treatment for test data on the PC directly and test data can be leaded in the OFFICE soft to edit and typeset;

3）The test frame is made of invar and its deformation is zero;

4) The tank is designed small and its cooling rate is rapid,

which save test cost;

5) Configure full set of weights according to national standard and international standard.

6) Combining the tank with stir motor to control temperature uniformity;

7) The tank is installed with cooling water pipe, which speed up cooling rate;

8）The software developed by our company support Windows98/2000/X operation system. The system soft can be installed on the all PC to use and there is Chinese and English interface. The users can add, revise and delete test report according to their needs;

9）When set parameters, fill in the parameters according to soft standard format and set the upper limit temperature (less than test temperature 50℃);

10) When calibrate deformation, set the parameters and then enter into deformation zero setting interface. The test begins.

11) The deformation and temperature measurement calibration can be done in the soft system without operating hardware equipment;

12) Users can add and delete the three curves in the test according to their needs, choose color freely and split the curves;

13) For observing temperature, users can check temperature monitoring dialog box to observe the temperature in the test process;

14) This machine has functions of warming curve real time display in the test process and temperature deformation curve real time drawing and measuring result automatic identification. It adopts database technique for test data storage;

15) It has function of constant temperature, which is applied to high frequency test and increase test efficiency;

16) It can do the test data treatment, test result query, test parameters correction and test report printing;

17) Test data can be checked easily and rapidly. Inputting temperature can check related deformation including temperature deformation;

18) Test result can be leaded in the Word edit  and send it on the internet;

 19) The three test frames can be used in the test with all order.

Technical parameters：

Temperature control range: -300 ℃ambient temperature

Heating rate: (120 ±10) ℃/ h (12 ±1) ℃/ 6min (50 ±5) ℃/ h (5 ±0.5) ℃/ 6min

Temperature indication error: 0.1 ℃

Temperature control accuracy: ±0.5 ℃

Maximum deformation indication error: ± 0.01mm,

Deformation Measurement range :0-1 .5 mm

Sample holder Count: 3

Quality rods and pallet load: 68g

Heating medium: methyl silicone oil (kinematic viscosity of 200 centistokes usually selected) or transformer oil

Cooling: natural cooling more than 150, 150 or less water cooling or natural cooling.

Heating power: 4kw

Instrument Size: 540mm × 520mm × 970mmConfiguration:

   1）main machine: 1 set

2）test frame: 3

3）thermal deformation pressure head ：3

4）vicat pressure needle: 3

5）displacement sensor: 3

6）temperature sensor: 1

7）computer with good brand: 1 set (512M DDR/80G SATA/no floppy drive /DVD/

Integration card /integration video /antibiosis waterproof keyboard /photoelectricity antibiosis mouse // WIN XP HOME Chinese version,15 LCD)

8）color printer with good brand: 1 set

9）test soft based on the WIN98\2000\XP Chinese version : 1 set

10）power line: 1 stick

11）signal line: 1 stick

12）weights: 1 set

Note ：Users should provide cooling water and ventilation and smoke venting equipment.
