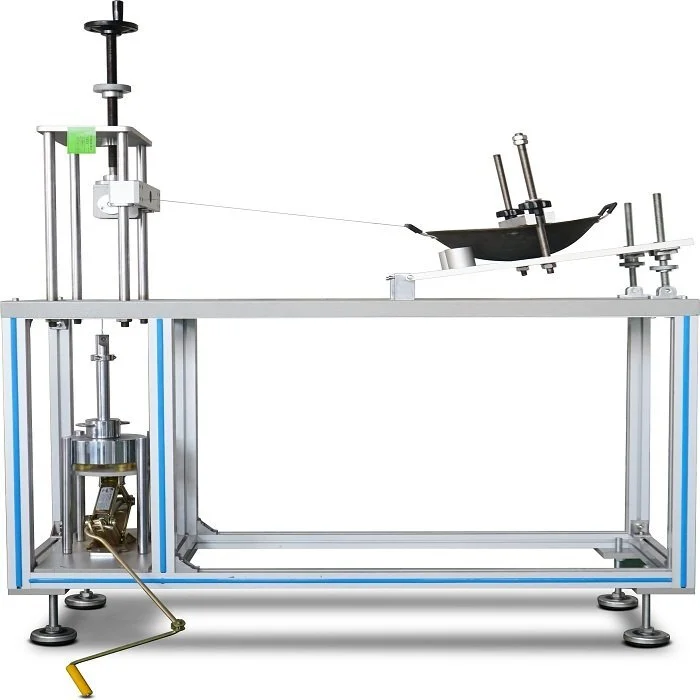

cookware handle pull resistance testing machine
cookware handle pull resistance testing machine
product description
cookware handle pull resistance testing machine is for Kitchen utensils handle pull resistance test, no loose fasteners after the test to assess the level of tensile handle kitchenware
Test Procedure
1, the prepared sample is placed in a fixed level test bench;
2, the traction wire and panhandle fixed by adjusting the height of the handle and the weight of the hammer to vacant;
3, while adjusting the angle of test benches and weights, so that the height of the hammer and the traction line panhandle achieve parallel;
4, the hammer is placed perpendicular to the impact of the highest level, the distance of 150mm;
5, after reaching impact times, the weight of the hammer and put in the lowest position and remove the sample to see its extent of damage;
technical paremeters
Hammer weight | 1kg ± 50g |
Impact hammer impact distance | 150mm ± 5mm |
Weight Weight | 10kg ± 50g |
Level Test station | angle adjustable |
Range of weights and hammer Activities | 300mm adjustable |
L * W * H | 1208mm * 1438mm * 453mm |
cookware handle pull resistance testing machine Suit for standard : CEN/TS 12983-2: 2005 Annex A
