Telephone Drop Tester

 Mobile Phone Drop Tester

Specifications

Mobile Phone Drop Tester
1.perform face, edge and corner drop test;
2.Import buffer parts, small noise
3.LCD dispaly

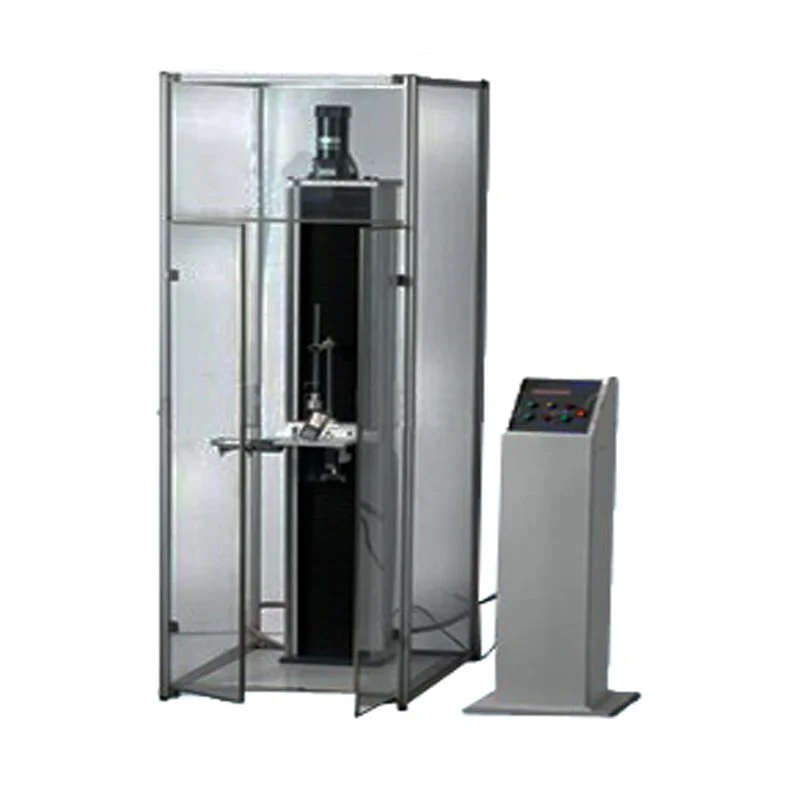

 Mobile Phone Drop Tester  is used to mobile, interphone, electronic dictionary, CD /MD/MP3 and other small electronics products or parts free drop test, then to check the impact resistance.

 Mobile Phone Drop Tester Features:

1.Adopt pneumatic structure, ensure pallets and specimen separate freely, can perform face, edge and corner drop test;

2.Import buffer parts, small noise

3.Automatic reset , drop and lift controller by electronic, so it’s easy to use

4.Display with decoder to track the height, so it show the accuracy drop height, the error does not exceed 2% or 10mm;

5.Motor fault protection, high and low limit protection, emergency stop protection;

6.Design criteria: GB/T2423.8, JISC0044, IEC60068

Main technical parameters:

Drop Height                                                        300-1500mm

Display                                                                 Digital

Height error                                                         ±10mm

Max specimen weight                                        10kg

Load size                                                             200×200×12(mm)

Impact size                                                          550×650×20(mm)

Machine size                                                       650×560×2150(mm)

Control chamber size                                        350×350×1000(mm)

Height adjust                                                       Motor drive

Drop (pneumatic)                                               Face,Edge,Angle

Air pressure                                                         8kg

Weight                                                                   80kg

Power                                                                   1 phase, AC 220V±10%

Our company

Introduction:

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

After-service

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer;
