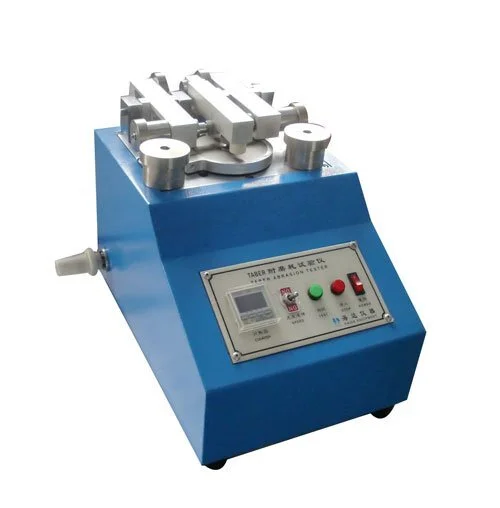

Taber Abrasion Test Equipment
Taber Abrasion test equipment
Specifications of Taber Abrasion test equipment :
Abrasion Tester
1.Professional design
2.High quality with reasonable price
3.Good after-sale service
Product description
Taber Abrasion test equipment applied to do the test of shoes wear-resistant in skin, leather, footwear leather,cloth, paint, paper, flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be removed after rotation to reach a certain number, observe the condition of the specimen or compare the weight with the previous materials, For the choice of grinding wheel models: H18, H22, CS10, S32, S33
The main technical parameters
|
Specimen Size: |
ED:108mm ID:8mm ,3mm |
|
Abrasion Wheel: |
2"(max.45mm), 1/2"(W) |
|
Wheel Center Distance: |
63.5mm |
|
Rotating Speed: |
60/72 rpm |
|
Load: |
250g, 500g, 750g |
|
Counter: |
LCD Touch screen, 0-999,999 Automatic shutdown |
|
Wheel and Specimens disk center space: |
37~38mm |
|
Machine Size: |
(L*W*H)530*320*310mm + vacuum cleaner |
|
Weight: |
18kg (Excluding vacuum cleaner) |
|
Power: |
1, AC220V/50Hz |
|
Wear index calculation formula: |
Abrasion loss weight/test turnover number×1000 |
|
Design criteria: |
DIN-53754, 53799,53109,52347, TAPPI-T476, ASTM-D1044,D3884, ISO-5470 |
|
Specimen Size: |
ED:108mm ID:8mm ,3mm |
|
Abrasion Wheel: |
2"(max.45mm), 1/2"(W) |
|
Wheel Center Distance: |
63.5mm |
Accessories:
One vacuum cleaner machine
One H10 wheel
One box of abrasive papers for recondition the wheel
Load 250,500 and 1000g
