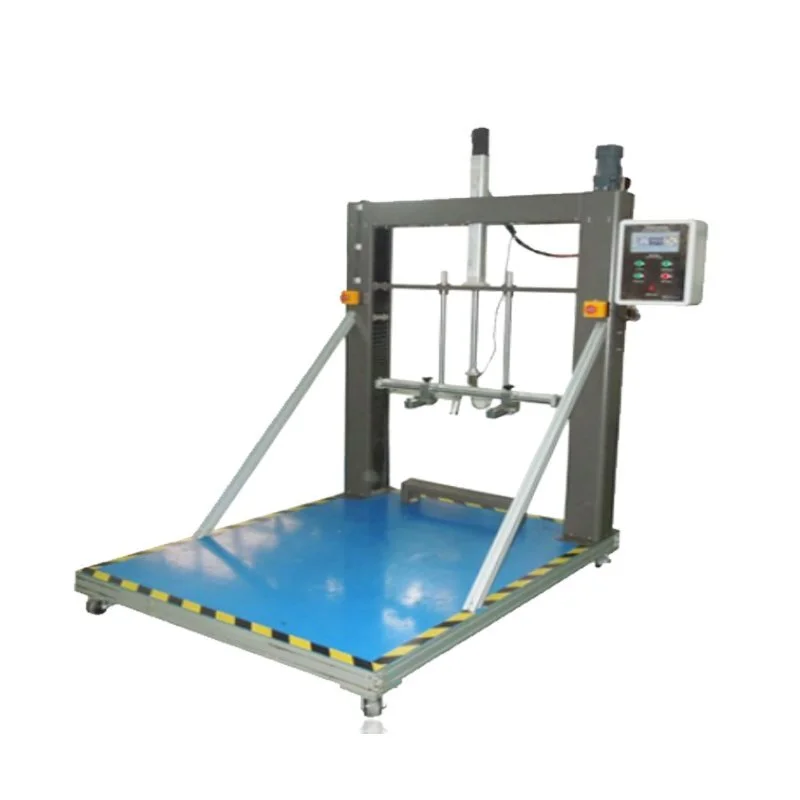

Strollers hand test equipment

Brief  Introduction:

This machine is to test the upholding and pushing durability property of the baby stroller according to ASTM Standards. The test method is: place the baby model in the stroller, leave the trailing wheel 150mm high from the ground when lifting the stroller; leave the front wheel 150mm high from the ground when pushing it, repeat this method continuously for 3000 times at the speed of 15±1 per minute, and check whether the stroller is damaged. The machine will stop automatically when it up to its set-up times, so there is no need to watch it.


Main Parameters:

The usage:

1.Position the vehicle on a horizontal surface without the parking device applied.

2.Place the test mass as for the stability test. If the vehicle is designed for more than one child use any
number of appropriate test masses, up to one in each place intended to be occupied by a child.

3.Alternately raise and lower the handle(s) by applying a vertical force to the handle so that the rear wheels and
front wheels in turn are raised (120 ± 10) mm, measured at the start of the test from the floor and then lowered

in a controlled manner without pause (see Figure A).

4.Carry out the test for a total of 10 000 cycles at a frequency of (15 ± 2) cycles/min.

Our company

Introduction:

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

After-service

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer;

Tag : fatigue testing, fatigue test equipment
