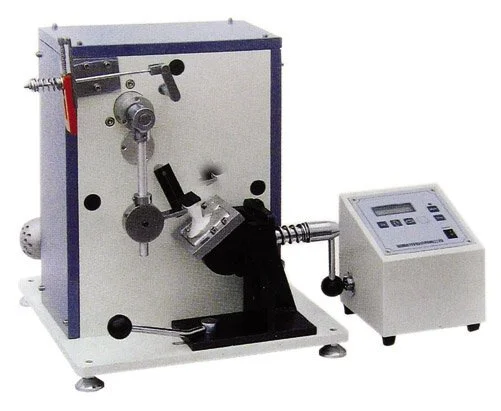

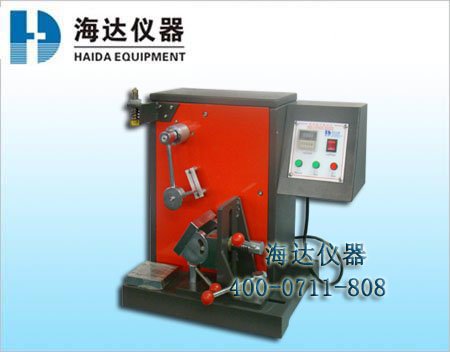

Shoes Heel Impact Fatigue Test Equipment
Shoes Heel Impact fatigue Test Equipment
Production Description:
This Impact Fatigue Test Equipment is made according to the standard and used to test the resistance of the shoe heel in a certain number of impacting energy and frequency at continuous blow until the blade heell is broken. From which we can understand the endure index and the quality of the heel.
Design criteria:
S-5131
Main technical parameters:
| Blow energy: | 0.68J/blow |
| Blow frequency: | 60blows/min |
| Swing arm: | φ12.5mm |
| Impact dash: | φ57mm,20mm(D) |
| Impact blade: | 20×6×35mm,3mm(R) |
| Specimen seat range: | high and low:~90mm(H),left and right:~80mm(W) angle:0~180° |
| Counter: | LCD,0~999,999 |
| Machine size: |
main machine: (L×W×H)50×45×50cm Control cabinet:(L×W×H)18×21×20cm |
| Weight: | 69kg |
| Power supply: | 1phase,AC220V,3A |
