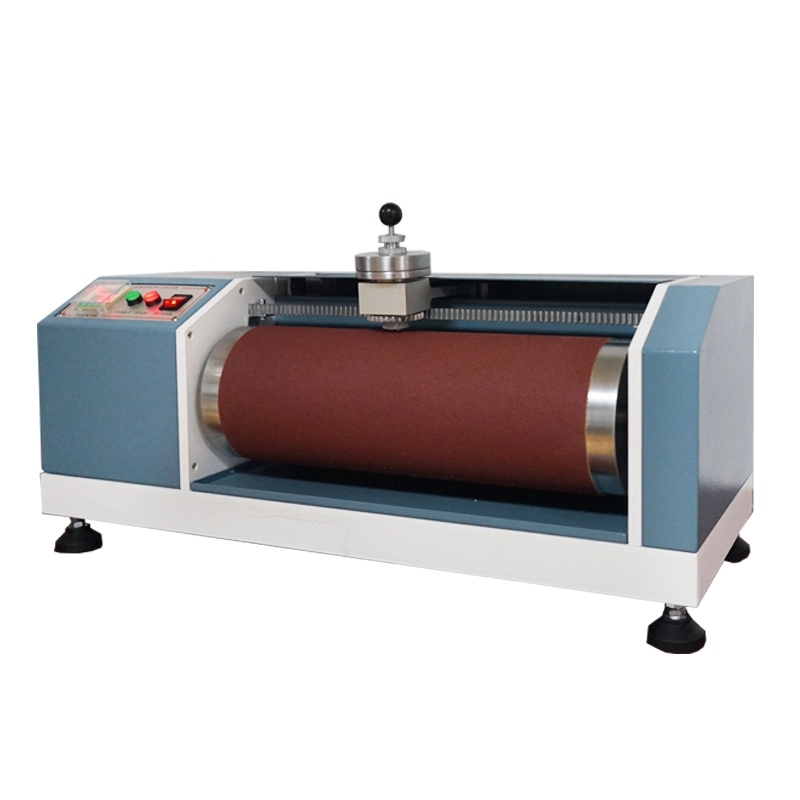

Shoe Soles DIN Abrasion Testing Machine
Shoe Soles DIN Abrasion Testing Machine DIN Abrasion Tester Video
USAGE:
Shoe Soles DIN Abrasion Testing Machine ,also as a kind of shoes testing equipment,is for flexible materials, rubber, tires, conveyor belts, shoe soles, soft leather, leather,DIN Abrasion . . Qualitative measure of wear and other materials, with high efficiency, good reproducibility and easy operation characteristics.
Principle:
At a predetermined contact pressure and a given area, the sample and the sandpaper into a certain angle, the measurement sample at a certain level of friction generated on the abrasive wear resistance.
Sandpaper attached to the surface of the roller package, the sample is pressed against the drum with the sandpaper, so that the lateral movement of the drum sample.
Wear the sample in the cylindrical end of the generation, measurement value of the sample mass loss, calculate the volume density of the sample by the amount of wear.
According to the standard
Flexible materials DIN abrasion testing machine reference standard: DIN-53516, ISO-4649, GB / T 9867.
Instrument specifications
Item | Specification |
Specimen load | 10N ± 0.2N |
Specimen size | ¢ 16mm, 6 ~ 15mm (D) |
Fixture Load | 2.5N |
Weight load | 2.5N，5N |
Fixture lateral displacement | 4.2 ± 0.04mm / wheel every lap |
Wheel diameter | Φ(150 ±0.2)mm |
Roller length | 460mm |
Roller speed | 40±1r.p.m |
Wear trip | 40m (20m) equivalent wheel turns 84 (42) |
Attrition rate | 0.32m/sec |
Inclination | 3 ° (test piece vertical support shaft and the roller angle) |
Angle of Dimensions | （L×W×H）70×30×30cm |
Power | 1∮，AC220V，2.6A |
Weight (about) | about 61kg |
Main feature:
The sample is small, save time, friction way of non-repetition, low noise, high efficiency, good reproducibility and easy operation
