Salt Spray Testing Machine1

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-E808-200

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

Salt Spray Testing Machine1 3 Salt Spray test Chamber Video Salt Spray Testing Machine1 4 Salt Spray Test Chamber Brochure

1.Usage

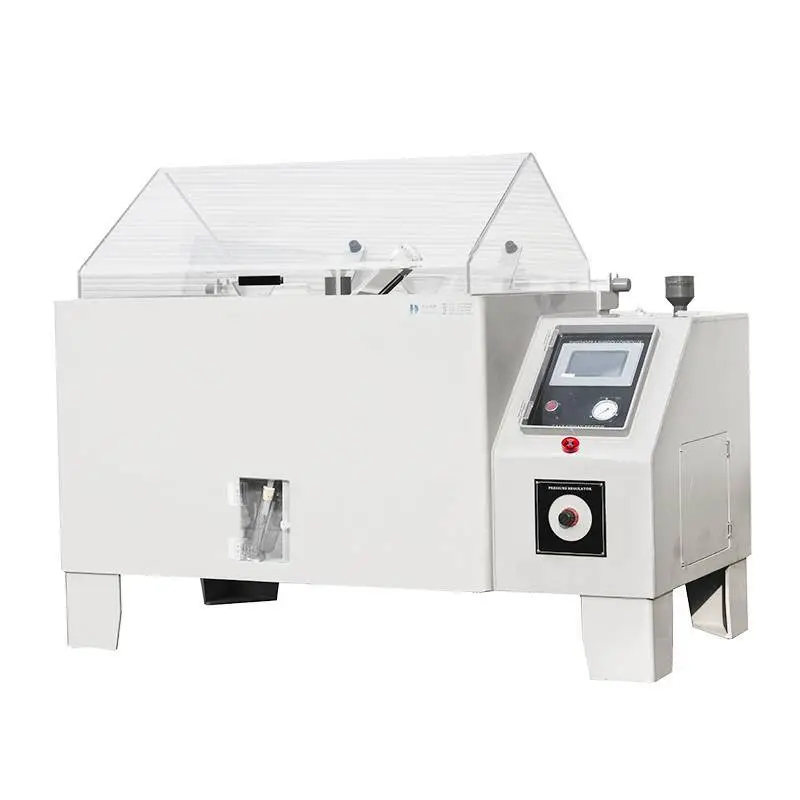

Corrosion testing chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

2.Specifications:

Model	HD-E808-120
Internal Size (WDH)	12001000500mm
External Size (WDH)	205012501400mm
Equipment Material	P.V.C rigid plastic plate, thickness 8mm
Sample tray	Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined
Temperature Range	Room temperature ~ 55℃
Temperature Fluctuations	≤±0.5℃
Temperature Uniformity	≤±2℃
Temperature Precision	±1℃
Spraying method	Continuous and Periodic spray type
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃
Brine Temperature	35℃±1℃
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH value	Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	600L
Brine Tank Capacity	40L
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/Nozzle Equipment x 1 set
Air source	1HP Air pump (provided by buyer)
Test criteria	ASTM B117-08, ISO 9227...

salt spray test chamber

3.Available test methods

Neutral salt spray test (NSS test)
Salt spray test (SS test)
Acetic acid salt spray test (ASS test)
Copper accelerated instinct test
High-temperature humid heat test
