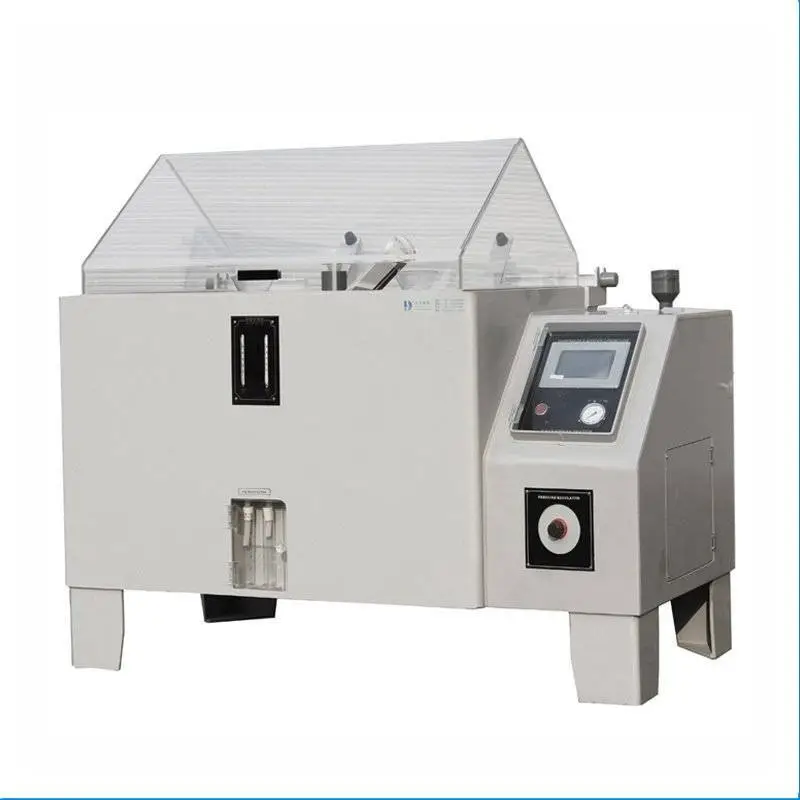

Salt Spray Corrosion Tester
Salt Spray Corrosion Tester
Salt Spray Test Chamber Video
Salt Spray test Chamber Brochure
Product Description
Salt spray corrosion test chamber through the examination of the material and its ability to salt spray corrosion protective layer, and a protective layer similar process quality compared to the same time assess the ability of certain product resistance to salt spray corrosion; this product is suitable for parts and components, electronic salt spray corrosion test element, a protective layer of metal materials and industrial products.
Experiment method
GB / T2423.17-2008 salt spray test method
GB / T 2423.18-2000 "basic procedures for electric and electronic products Test Ka"
GB / T10125-1997 Corrosion tests in artificial atmospheres - salt spray test _
GB / T10587-2006 salt spray test chamber Technical conditions
GB10593.2-1990 electric and electronic products environmental parameters measurements
GB / T1765-1979 Determination of resistance to humidity, salt spray, weather resistance (artificial acceleration) of the film prepared test
GB / T1771-2007 Paints and varnishes - Determination of resistance to neutral salt spray
GB / T12967.3-2008 aluminum and anodized aluminum alloy film detection methods - Part 3: Copper accelerated
GB / T5170.8-2008 and IEC, MIL, DIN, ASTM and other standards equivalent to experiment method
Do Test Method:
Neutral salt spray test (NSS test) salt spray test (SS test)
Acetic acid salt spray test (ASS test)
Copper accelerated vinegar instinct test
Heat and humidity test
Test temperature: neutral salt spray test: Laboratory: 35 ℃ ± 1 ℃, b saturated air barrel:. 47 ℃ ± 1 ℃, acid corrosion test: Laboratory: 50 ℃ ± 1 ℃, b saturated air barrel: 63 ℃ ± 1 ℃, may be set according to JIS, CNS and other standards
Features：
Auto replenishment of water when water level is inadequate.
Precision glass nozzle (PYREX Brand): The manufacturer guarantees that the nozzle shall not be
jammed by crystallization of salt within 3000 hours after filling of the brine.
The controlling devices are installed on one panel that offers simple operation.
The sprayer is equipped with dual overheating protections and alarm for inadequate water level so
as to assure safety.
Main Technical Parameter
Model | HD-E808-90 |
Internal Size (W*D*H) | 900*600*500mm |
External Size (W*D*H) | 1410*850*1200mm |
Equipment Material | P.V.C rigid plastic plate, thickness 8mm |
Sample tray | Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined |
Temperature Range | Room temperature ~ 55℃ |
Temperature Fluctuations | ≤±0.5℃ |
Temperature Uniformity | ≤±2℃ |
Temperature Precision | ±1℃ |
Spraying method | Continuous and Periodic spray type |
Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ |
Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ |
Brine Temperature | 35℃±1℃ |
Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
PH value | Salt Spray Method (NSS ACSS6.5~7.2) |
Lab Volume | 270L |
Brine Tank Capacity | 25L |
Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
Accessories | Testing Salt/ Measuring tank/Nozzle Equipment x 1 set |
Air source | 1HP Air pump (provided by buyer) |
Test criteria | ASTM B117-08, ISO 9227... |
Precautions
1, regular cleaning and maintenance of salt spray chamber pressure tank, brine tank nozzle.
2. Do not pressure sodium chloride solution from the barrel manually add water poured out, the first transfer solution within the cylinder and then further cleaned with distilled water.
3, Do not test the exhaust pipe behind the blockage, in order to avoid too much pressure to make the cabinets housing deformation.
4, do not put inflammable and explosive materials inside.
5, salt spray chamber behind the pressure gauge is 2 kg, 1 kg in front, factory in Wuhan still test test Equipment Co., Ltd. has designed, do not tamper with.
6, spray amount is less than set the spray tower to increase, reduce excessive spray spray tower (spray amount collected standard is 1 ~ 2ml / h, takes in 16-hour average)
