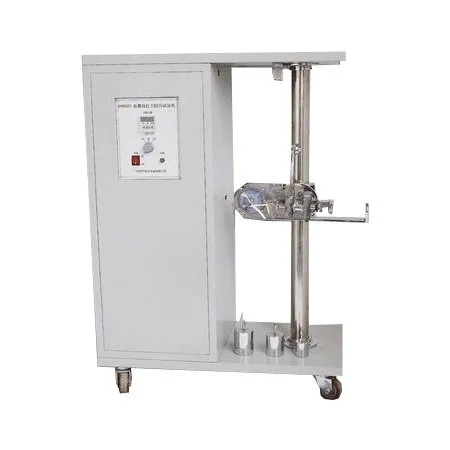

Power Line Fixing Frame Torque Tester ，Furniture Tester

Introduction：

Power Line Fixing Frame Torque Tester ，Furniture Tester is used for testing torsion test of household and similar electrical appliances, power line clamping device is firm and design. This machine adopts torque motor? Lifeforce, tension test on the power line of samples being. Considering the electricpower line? Goods position is different, the machine in terms of the structure oftorque motor is installed on a set of columns, and column and is arranged in the base with four wheels, working head around the position adjustment is very convenient.

Parameters：

IEC60598 maximum test torque

10Nm

20Nm

50Nm

100Nm

200Nm

Torque measuring range 1%-100%

The minimum torque reading 0.01Nm 0.1Nm

Value of the relative error of ± 1% indicated torque

The torsion angle of 0.1 ° minimum reading

The maximum torsion angle 99999 °

Torque angle measuring relative error of ± 1%

The sample size 0.1-200mm

The maximum distance between 200mm chuck

The rotation direction of two-way test

Testing machine level 1

Power supply 220V, 50Hz

Host size 950*350*370mm
