Pendulum Impact Testing Equipment HD-R802
Specifications
Pendulum Impact Testing Equipment
1.Used to test the fastness of plastic material
2.Digital dispaly
3.Capacity optional
Pendulum Impact Testing Equipment
1.The usage
Pendulum Impact Testing Machine is used for impact toughness determination of rigid plastics, enhanced nylon, glass fiber reinforced plastics, ceramics, cast stone, insulation material and other non-metal materials. It is the ideal test equipment of chemical industrial, R&D institution, universities and colleges, quality testing department and professional manufacturer laboratory.
2.Pendulum Impact Testing Machine Specification:
|
Impact speed |
3.4m/s |
|
Impact energy |
5.5J,4.0J |
|
Pendulum angle |
150° |
|
Impact center distance |
0.332m |
|
Pendulum power distance |
Pd5.5=2.8355N.m |
|
Distance between impact blade and jaw |
22mm±0.2mm |
|
Blade filleted radius |
R=0.8mm±0.2mm
|
|
Energy loss |
4.0J ≤0.05J;5.5J ≤0.10J |
|
Temperature |
15—35°C |
|
Power |
220V/50Hz/200W |

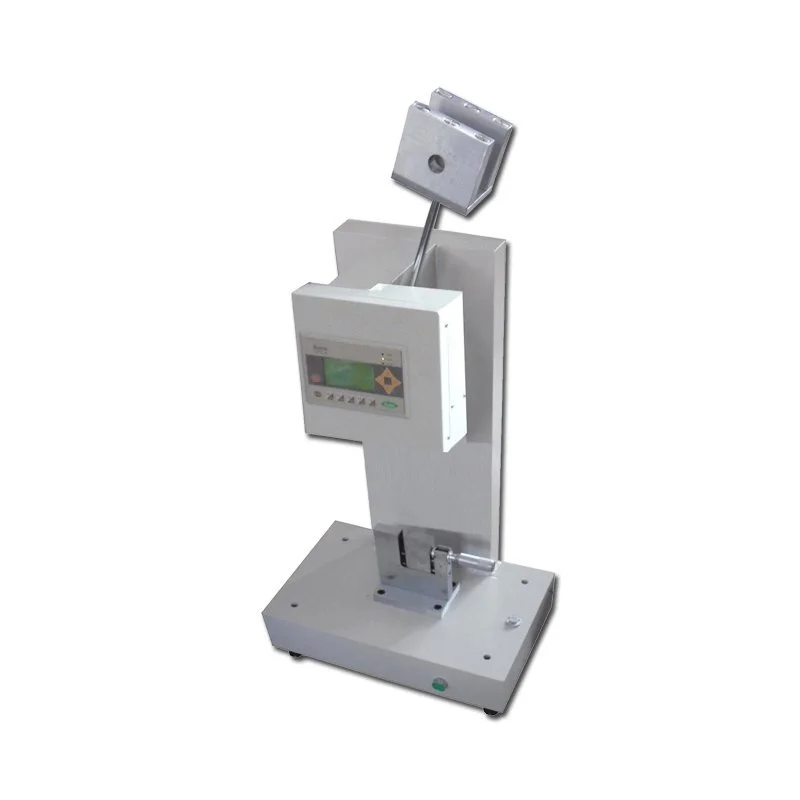

3. The pictures
One--the faceplate
