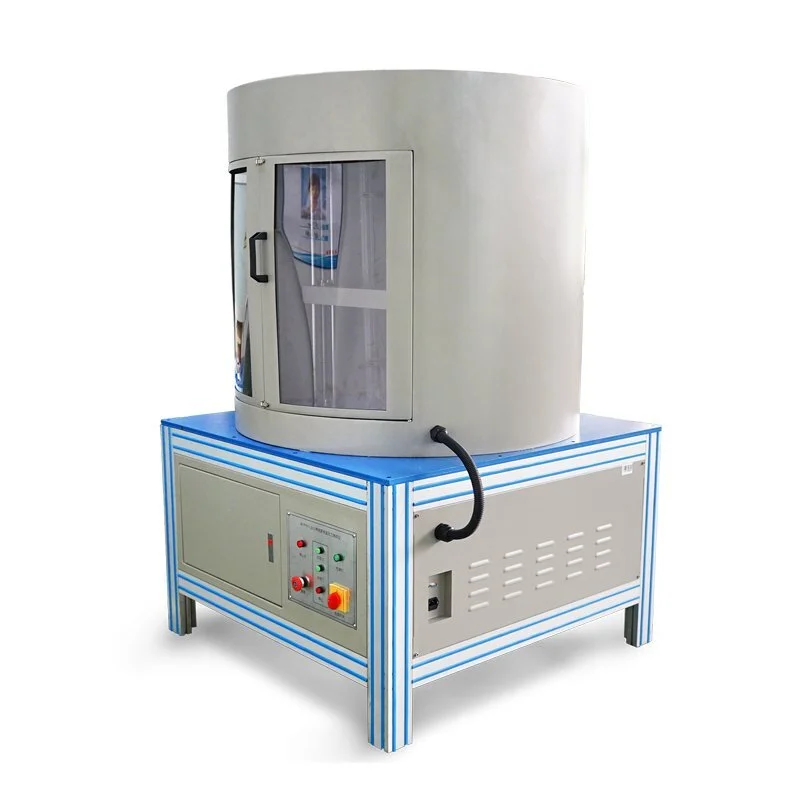

Office Chair Seat Vertical Force Testing Machine

Design for : Bifma X 5.1 Clause 7

Office Chair Seat Vertical Force Testing Machine used for the vertical pressure testing, destructive testing and fatigue testing use of the office chair Ipomoea base (Star Base) repeated pressure loading in setting force test cycle, as the fatigue test. Pressure on the size of the holding pressure time and cycle number of tests can be adjusted.

Main Parameters:

1、Bifma × 5.1 Section 8

2、Output rated pressure:> 3000KG

3、Stroke 10 ~ 500 mm, adjustable speed range 0-50 mm pole control servo planetary reducer + domestic + servo motor

4、Can test the maximum five-star foot diameter less than 900mm

5、Dwell time, the machine, the light of the sample changes and automatically adjust and compensate for the pressure difference, stable pressure test packing process given.

6、The peak value of the machine with force, you can record the maximum damage value

7、Controlmode: PLCand LCDdisplay

8、Counter: 0 to 999,999 times, also choose a single cycle, in line with the requirements of the test standard。

9、Office Chair Seat Vertical Force Testing Machine withiron meshandshatterprooffilmprotective coverto preventdebrispop-upspecimenduring testing.
