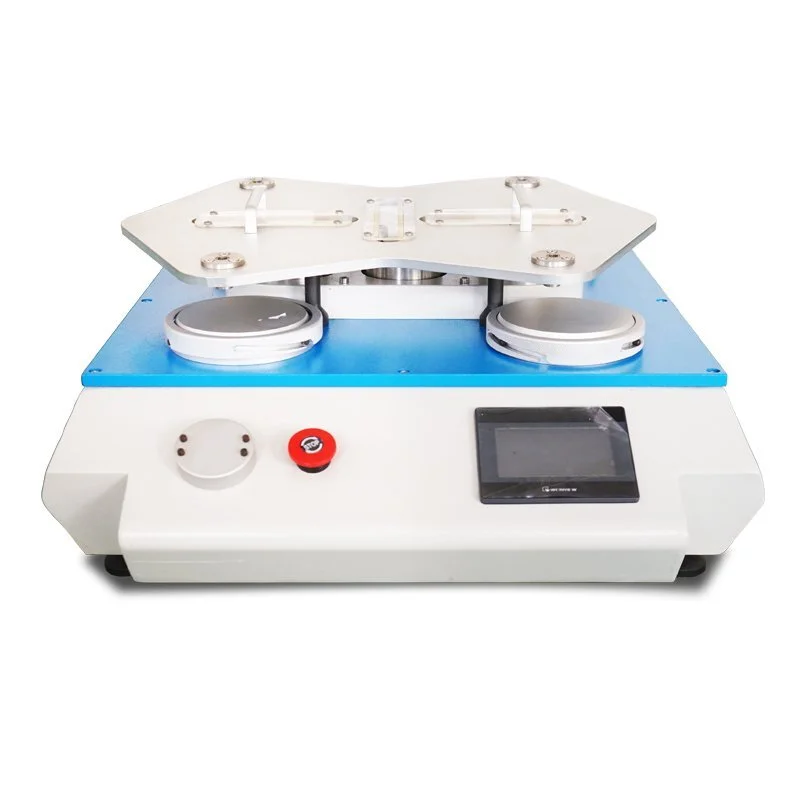

Martindale Abrasion Testing Machine

                                                                                                       Martindale abrasion testing machine

  Martindale Abrasion Tester with 4 Stations Video

  Martindale Abrasion Tester with 8 Stations Video

Produce intoduce:
martindale abrasion testing machine is mainly to tests shoes materials ,textiles, footwear outside layer, lining wrapped substrate and similar fabric - abrasion, etc. can simultaneously test four specimens, the test hammer mill in the direction of change, repeatedly rub the specimen at a predetermined under friction times, measure its wear characteristics, with power and memory function

Feature

Leather footwear martindale abrasion testing machine mainly applies to the resistance test of textile and outside layer, lining or underlayer of the footware or the similar fabric. Testing the samples as per the standard, test can be classified as dry test and wet test.  And test the samples Lissajous-oriented for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.

The parameters

Martindale Abrasion tester neet following testing standards:

ISO12947.2-1998 "Determination of the abrasion resistance of fabrics by Martindale method for textiles Part 2: Determination of sample damage";

ISO12947.3-1998 "Determination of Textile Abrasion Resistance by Martindale Method Part 3: Determination of Quality Loss";

ISO12947-4—1998 "Determination of abrasion resistance of fabrics by Martindale method in textiles Part 4: Appearance change evaluation".

American Society for Materials (ASTM) standards

ASTMD4966-2010 "Fabric Abrasion Resistance Test Martindale Abrasion Tester".

EU standards

ENISO12947-2:1998 "Determination of abrasion resistance of textiles by Martindale method Part 2: Determination of sample damage";

ENISO12947-3:1998 "Determination of the abrasion resistance of fabrics by Martindale method in textiles Part 3: Determination of mass loss";

ENISO12947-4:1998 "Determination of the abrasion resistance of fabrics by the Martindale method in textiles-Part 4: Evaluation of appearance changes".

German Institute for Standardization (DIN) standards

DINENISO12947-2-2007 "Textiles. Determination of fiber abrasion resistance by the Markov method. Part 2: Test damage determination";

DINENISO12947-3-2007 "Textiles. Determination of fiber abrasion resistance by the Markov method. Part 3: Determination of mass loss";

DINENISO12947-7-2007 "Textiles. Determination of the abrasion resistance of fabrics by the Martindale method. Part 4: Appearance change evaluation".

British Standards Institution (BS) standards

BSISO12947.2-1998 "Determination of the abrasion resistance of fabrics by Martindale method for textiles Part 2: Determination of sample damage";

BSISO12947.3-1998 "Determination of abrasion resistance of fabrics by Martindale method in textiles Part 3: Determination of mass loss";

BSENISO12947-4-1999 "Determination of Abrasion Resistance of Textile Fabrics by Martindale Method Part 4 Evaluation of Appearance Change".
