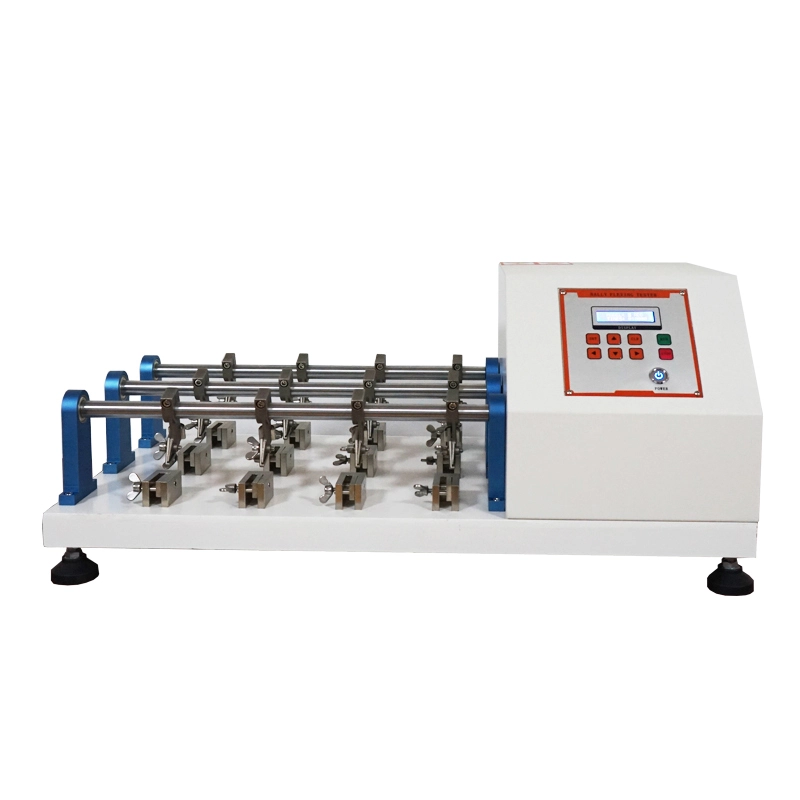

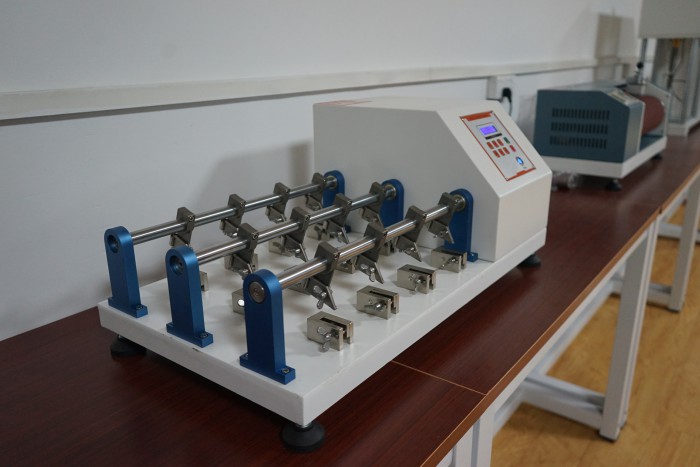

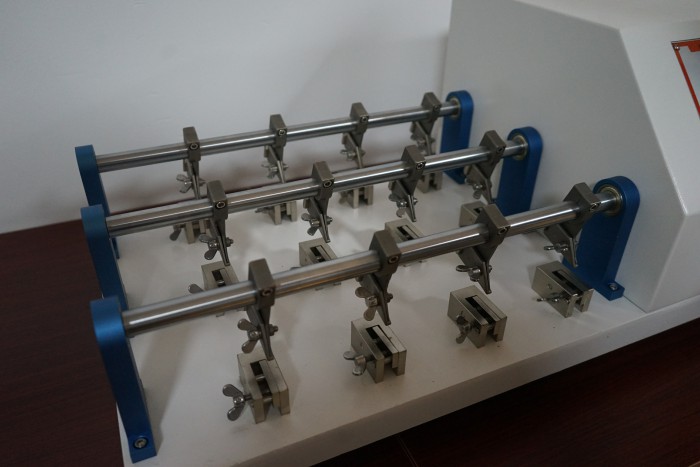

Leather Scratch Resistance Tester
Leather scratch resistance tester
Test Principle:
The Leather scratch resistance tester according to test standards : test method id one side face of the sample as the inner surface and the other side face as the outside surface and bend this surface back and forth, write down the times that the sample have broken; or set the breakage time, then take it out and observe the degree it broken.

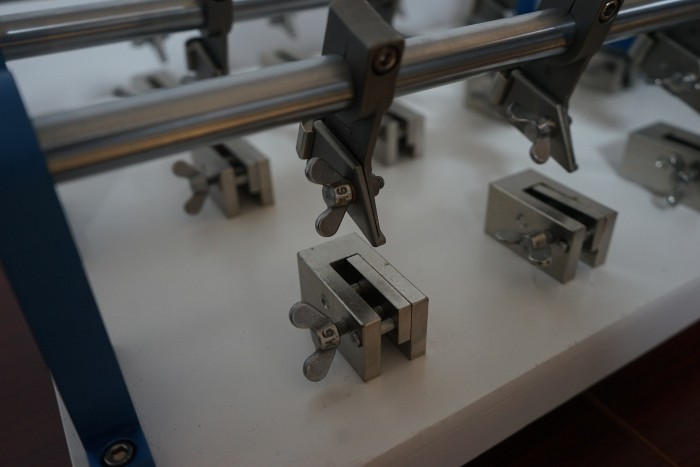

Clamping the specimen in fixture, after flexing back and forth in 22.5°, observe the surface with a magnifying glass, record the damage degree to judge the resistance strength of flexing..
Standard Features:
Fixture option | 12 Groups |
Specimens | 70x45mm |
Bending Angle | 22.5±0.5° |
Bending speed | 100±5cpm |
Counter | LED,0～999,999,Automatic shutdown |
Machine Size | (LxWxH)785x460x320mm |
Power | 1∮,AC220V/50HZ |
Weight | 80kg |
