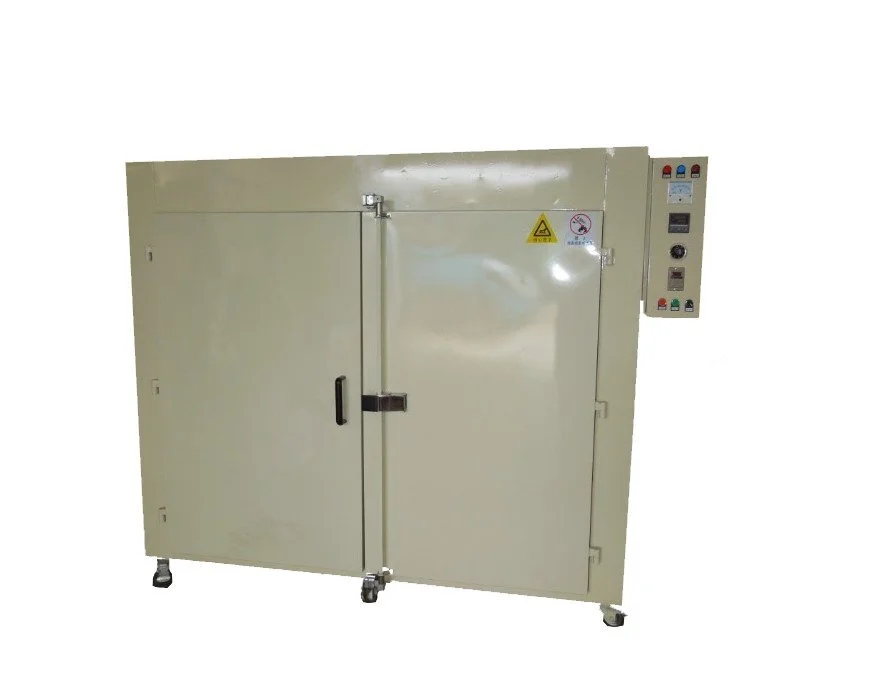

Large Capacity Hot Air Drying Oven
Large Capacity Hot Air Drying Oven
Specifications
Large Capacity Hot Air Drying Oven
1 . Stainless steel material
2 . High temperature
3 . High precision
4 . ISO , SGS , CE
Application :
Hot Air drying oven is suitable for electronic , petroleum , mining , medicine , machinery manufacturing , etc . Products of drum wind drying and heat treatment . This series product is safe , energy saving , thermal insulation performance is good , the drying oven temperature uniformity is good , simple installation , convenient maintenance , etc .
Structure :

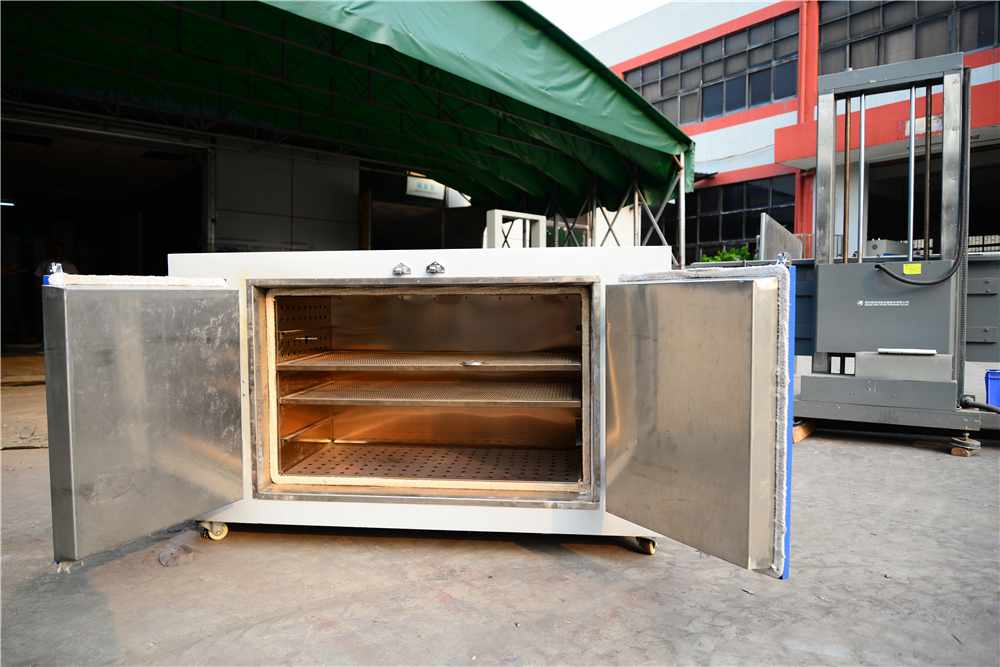

1. Drying oven adopts monolithic , thermal insulation layer is made of high quality mineral wool , shell , hot air circulation device , electric control cabinet on the right side of the oven is convenient for operation , drying cabinet equipped with new air in and out of port , the cabinet ventilation duct and hot air circulation fan , drying the casing .
1. Case material : body skeleton adopts 40 x 40 mm Angle steel welded together , enclosure wall material is 0 . 8 mm thick stainless steel plate ; Wind layer is made of thick 1 ( SPCC ) cold rolling steel plate , the outer wall material is 1 mm cold rolled high carbon steel , body surface coating light gray paint .
1. Thermal insulation material : high quality mineral wool , the thickness of the insulation layer design requirements to ensure that the oven in the rated operating temperature range , casing outer wall temperature at room temperature + 25 °C or less ; > 100 mm insulation layer thickness of insulating layer at the bottom of the oven about 80 mm .
1. Door sealing strip : High temperature resistant asbestos rope seal
1. The door is : Design to open the door and the door is manual flat open , the door is steel structure steel and precision of high qualified steel plate assembly welding and into .

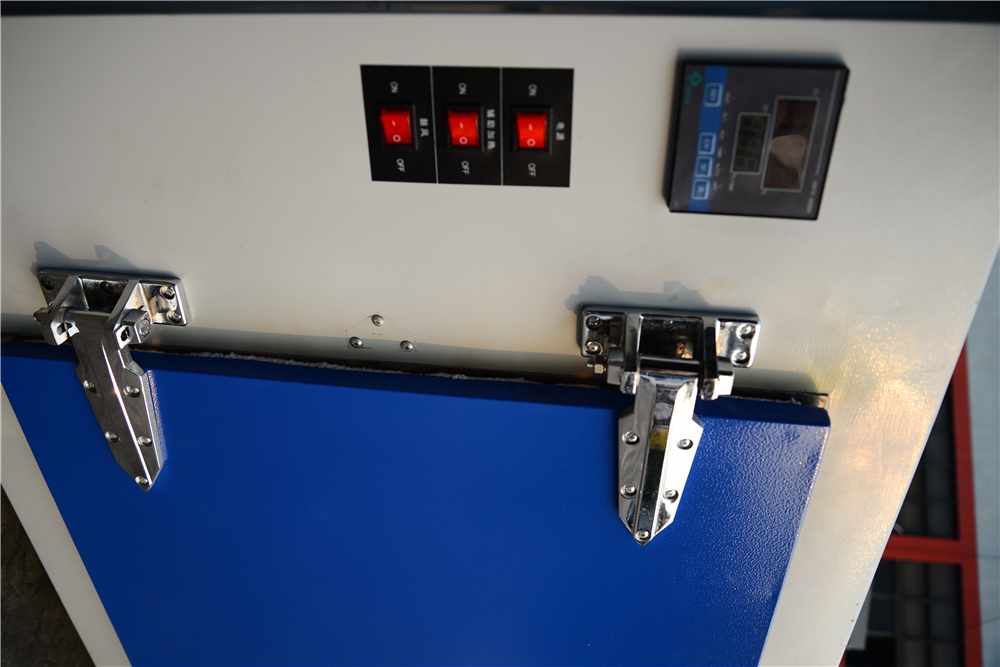

1. The door is sealed : USES the manual of the rod handle and the door is the soft edge sealing device , pressure can make the door and enclosure , make sure remain the state of closed box in the process of production , to eliminate the hot gases to escape , improved working environment , guarantee the box temperature uniformity and enhance energy saving effect .
1. The wind but I : Wind but made of 0 . 8 mm thick stainless steel plate surface blunt D13 holes , is used to control the air flow , to improve the drying oven temperature uniformity
Product Main specifications :
| Equipment model |
HD - 708 Hot Air Drying Oven |
| Drying oven work size | Deep 960 ( L ) x width1760 ( W ) x 1420 mm ( H ) |
|
Drying oven outside diameter size
|
Deep 1200 ( L ) x width 2200 ( W ) x 1860 mm ( H )
|
| The rated power | Three phase four wire , 380 v , 50 hz |
| The highest working temperature | 300°C |
| Using the temperature | Room temperature + 10 ~ 300 °C can be arbitrarily set |
| Heating zones | 1 zone |
| Heating element connection | Y |
| Heating power | 24 kw |
| The temperature control mode | Using digital intelligent microcomputer PLD temperature control system . |
| Temperature control precision | ±1°C |
| Outer furnace wall temperature | Temperature 35 °C or less |
| Drying oven door way | Manually turn |
| Hot air circulation fan | 370 w x 1 |
