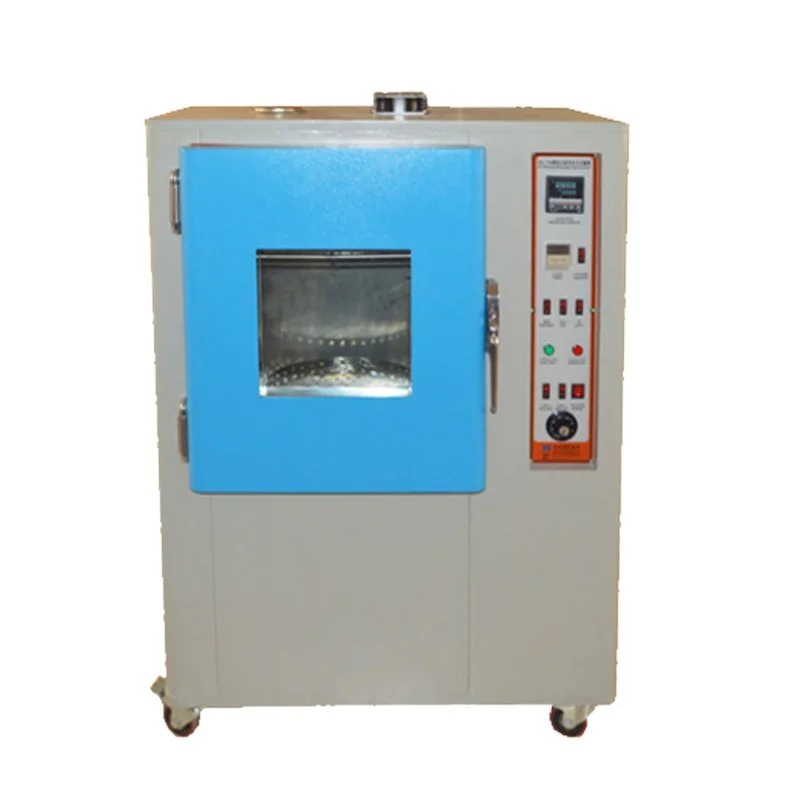

Lamp Anti-Yellowing Testing Machine

Model:

HD-E707

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Delivery:

15 days after order.

Inquiry

Write a Review

1. Function:

Lamp type anti-yellowing testing machine is made by stimulating the sunlight of container transportation and environmental radiation to test various material or related products to see the color resistance, and thus be used for reference of the deployment of making the material and chemical raw materials.Suitable for: leather, shoes industry, corrugated paper, rubber, glue, paint, etc.

Ø Anti-yellowing: to stimulate the environment condition, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50’C for 9 hours, in theory as exposed to atmosphere for 6 months.

Ø Aging: it can promote the increase of sulfur rubber deterioration so as to calculate the change rate of tensile and elongation before and after heat. Its generally thought that test for one day at 70C, in theory as exposed to the atmosphere for 6 months.

Standard features:

Internal chamber size(WDH)	505060cm
External chamber size(WDH)	11474130cm
Temperature Range	Ambient Temperature~200℃
Control Mode	Automatic Calculation Controller
Temperature display accuracy	0.1℃
Control accuracy	±3℃
Distribution accuracy	±1℃ (ambient ~ 100℃)
Time memory	0-999 hours, Power Failure Memory Type, with Buzzer
Sample holder rotation speed	Diameter 45cm, 10±2 roll/min
UV light source	300W UV lamp
Standard Accessories	Sample shelf x 2pcs
Heating method	Hot air circulation
Security devices	Over-temperature power-off indicator light;Safety overload switch ammeter
Chamber material	Internal: Stainless Steel SUS304;External: Steel plate with baking varnish
Accessory	1 x English operation manual, 1 x Operation video CD

3 Test Specimen Mounting:

The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.
