Castor rolling fatigue test
The usage

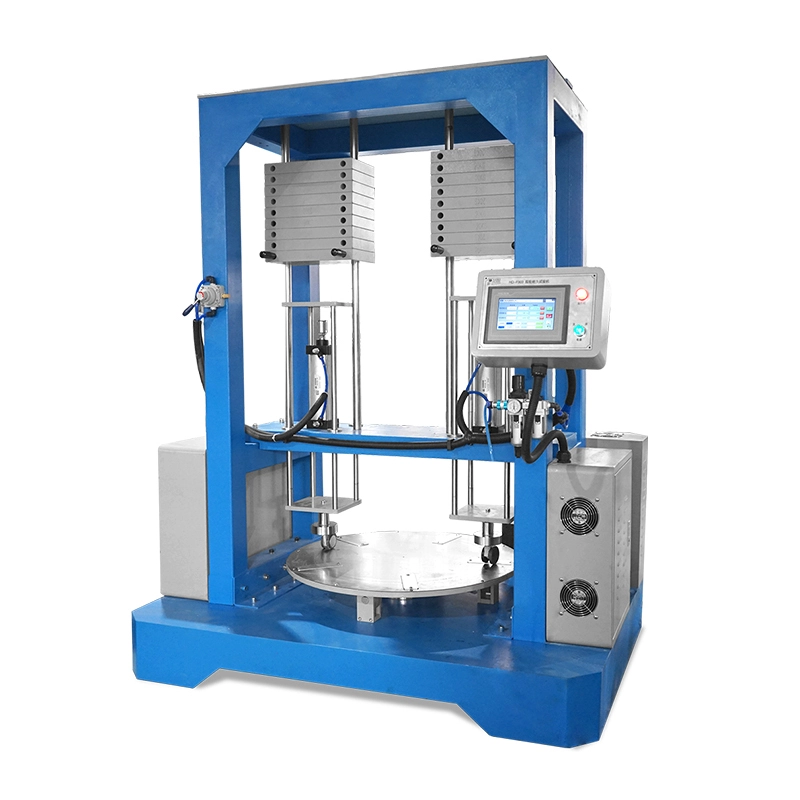

High Quality Castor rolling fatigue tester is a two station testing equipment.Office Chair Rotating Testing Machine is used to test the durability of the seat of the chair.
Specifications
According to test Standard:Bifma × 5.1-2011 and Section 8 11.3
Applicability: This test applies to all types of chairs.
Purpose of Test: to evaluate the ability of a chair to withstand heavy impact forces on the seat.
This tester is designed for dynamic and cyclic durability seat test.
Used to test the pressure at the bottom of the rod thrust bearing life
Rotation frequency range: 5 ~ 15CPM

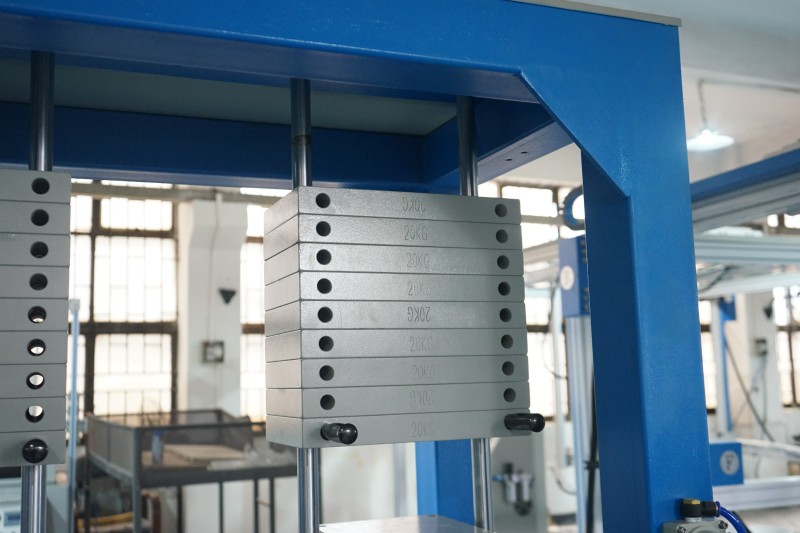

Adjustable seat surface sand bag loading force (weight 113kg)
Testing Seat height range :350-800mm
The maximum diameter of the chassis can be tested: less than 740mm
Specifications
Office Chair Rotating Testing Machine | |
Mode | HD-F731 |
Counter | 0-999,999, memory, output control |
Impact sandbags diameter | 16 inch 125 pounds standard sandbbags |
Static pressure mould diameter | 8 inch, 165 pounds briquetting |
Impact speed | 10-30 times/minute or specified |
Static pressure speed | 10-30 times/minute or specified |
Cylinder stroke | 0-300mm |
Rail height | 90-135cm |
Machine size | 270*85*80cm |
Power | AC220V, 3A |
BIFMA requirements | impact 100000 times+ static pressure 20000 times(left) |
