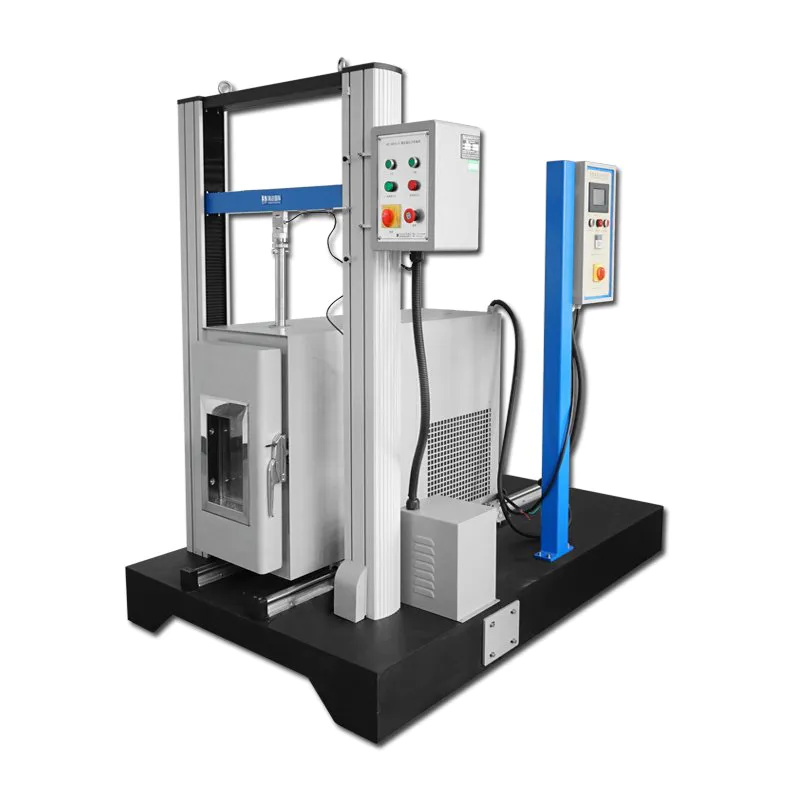

HD-B607-S High Low Temperature Tensile Strength Tester 1

HD-B607-S High Low Temperature Tensile Strength Tester 2

HD-B607-S High Low Temperature Tensile Strength Tester

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-B607-S

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

High Low Temperature Tensile Strength Tester

Applications:

This High low temperature tensile strength tester can do tensile test, tear test, peel test, bond test with different clamps for textile, fabric, leather,tape, film and other kind of materials with high low temperature environment.

This tensile test equipment uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.

HD-B607-S High Low Temperature Tensile Strength Tester 4

Film

HD-B607-S High Low Temperature Tensile Strength Tester 5

Wire and Cable

HD-B607-S High Low Temperature Tensile Strength Tester 6

Plastic Pipe

HD-B607-S High Low Temperature Tensile Strength Tester 7

Adhesive Tape

Feature:

Applications(tensile testing):

Deformation under defined load: Test deformation under defined load of tested sample

Load under defined deformation: Test load under defined deformation of tested sample

Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.

Design Standard(inculding but not limited to...):

Tensile Test: ASTM D882 ASTM D 638 / ISO 527-1/2

Bend Test ISO-178 / ASTM D 790

Tear Test：ASTM D 624

Peel Test : ASTM D 3330

Compression Test : ASTM D 659

Specifications:

Tensile Tester
Frame capacity	2000kg
Load cell brand	Germany brand load cell for high accuracy
Load accuracy	0.5% F.S
Control system	PC with windows 7 system
Motor	Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Vertical test space	1200mm including fixture
Test speed	0.1~300mm/min (adjustable)
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Internal dimension(WDH)	400500500mm
High & Low Temperature Chamber
Temperature range	-40~+150℃
Temperature Accuracy	±1℃
Cooling speed	1℃/min in average (without loading)
Heating speed	3℃/min in average (without loading)
Internal chamber material	SUS#304 stainless steel, mirror finished
External chamber material	Stainless steel with paint spray
Cooling method	Air cooling
Controller	LCD touch screen, programmable control temperature and humidity can set different parameter for cyclic test
Insulation material	50mm high density rigid Polyurethane foam
Heater	Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor	France Tecumseh compressor
Lighting	Heat resistance
Temperature sensor	PT-100 dry and wet bulb sensor
Observation window	Tempered glass
Testing hole	Diameter 50mm, for cable routing
Sample tray	SUS#304 stainless steel, 2pcs

Structure

HD-B607-S High Low Temperature Tensile Strength Tester 8

Contril Panel

High-precision sensor, high-speed high-precision AD converter, high-speed sampling.

HD-B607-S High Low Temperature Tensile Strength Tester 9

Sensor

Set the manual operation function of ascending and descending No need to control the lift through the computer.

HD-B607-S High Low Temperature Tensile Strength Tester 10

Lift Control

Using the company's independent research and development test software All test parameter settings can be completed.
