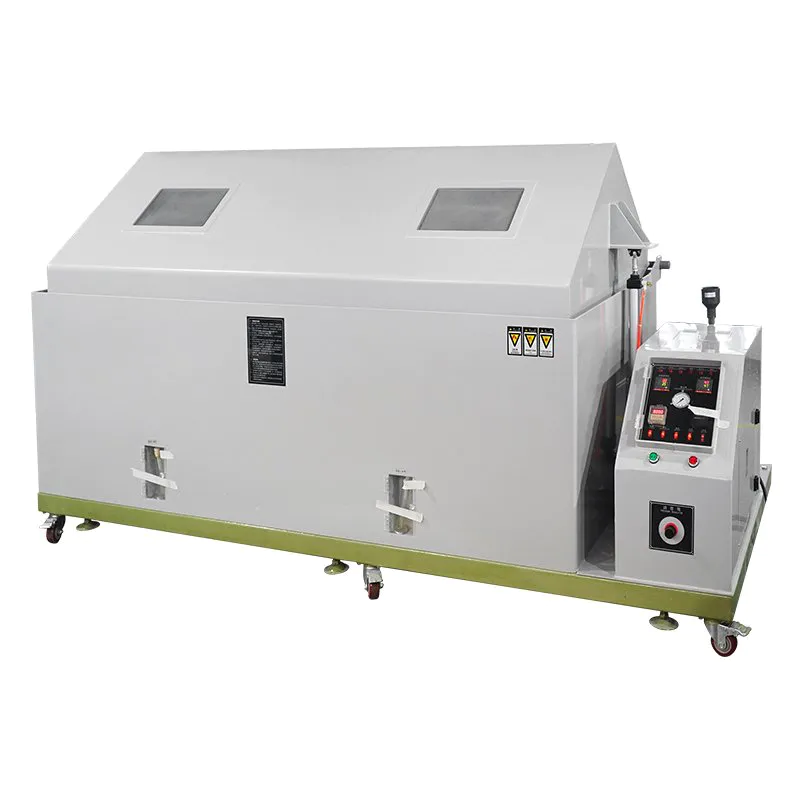

Cyclic Corrosion Testing Machine
Applications:
Cyclic Corrosion Testing Machine is used for imitating natural status in increase imitation test. The imitating condition is harder than status that we usually meet. The tester can combine the follow status such as: salt smog, dry, humidity,normal temperature, low temperature.The tester is for product used in intense changeable environment, such as: parts of automobile, navigation equipment, camera equipment, building material, electroplate coating and resistant to metal electrolytic corrosion in electrical system. High precision P.I.D.temperature control meter with its error ±0.1°C.
![HD-E808-200 Cyclic Corrosion Testing Machine 6]()
Hardware
![HD-E808-200 Cyclic Corrosion Testing Machine 7]()
Electrical Appliances
![HD-E808-200 Cyclic Corrosion Testing Machine 8]()
Automotive
![HD-E808-200 Cyclic Corrosion Testing Machine 9]()
Electronics
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
Applicable Standards:
CNS:3627、3385、4159、7669、8886；JIS：D0201、H8502、H8610、K5400、Z2371;
ISO: 3768、3769、3770;
ASTM: 8117、B268.
Model | HD-E808-200 |
Internal Size (W*D*H) | 2000*1000*600mm |
External Size (W*D*H) | 2700*1250*1500mm |
Equipment Material | P.V.C rigid plastic plate, thickness 8mm |
Sample tray | Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined |
Temperature Range | Room temperature ~ 55℃ |
Temperature Fluctuations | ≤±0.5℃ |
Temperature Uniformity | ≤±2℃ |
Temperature Precision | ±1℃ |
Spraying method | Continuous and Periodic spray type |
Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃ |
Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃ |
Brine Temperature | 35℃±1℃ |
Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
PH value | Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2 |
Lab Volume | 1200L |
Brine Tank Capacity | 40L |
Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
Accessories | Testing Salt / Measuring tank / Spray Nozzle x 1 set |
Air source | Air pump (provided by buyer) |
Test criteria | ASTM B117-08, ISO 9227... |
![HD-E808-200 Cyclic Corrosion Testing Machine 10]()
Presssure Regulating Valve
The pressure regulating valve is used for adjusting the pressure inside the chamber when the air pressure is over high or low
![HD-E808-200 Cyclic Corrosion Testing Machine 11]()
Pressure Gage
The pressure gage can display the pressure value when the heated air reaches the nozzle by going throug the Saturated air tank.
![HD-E808-200 Cyclic Corrosion Testing Machine 12]()
Measuring Pail
Gather the volume of spray of each test 50ml per degree
