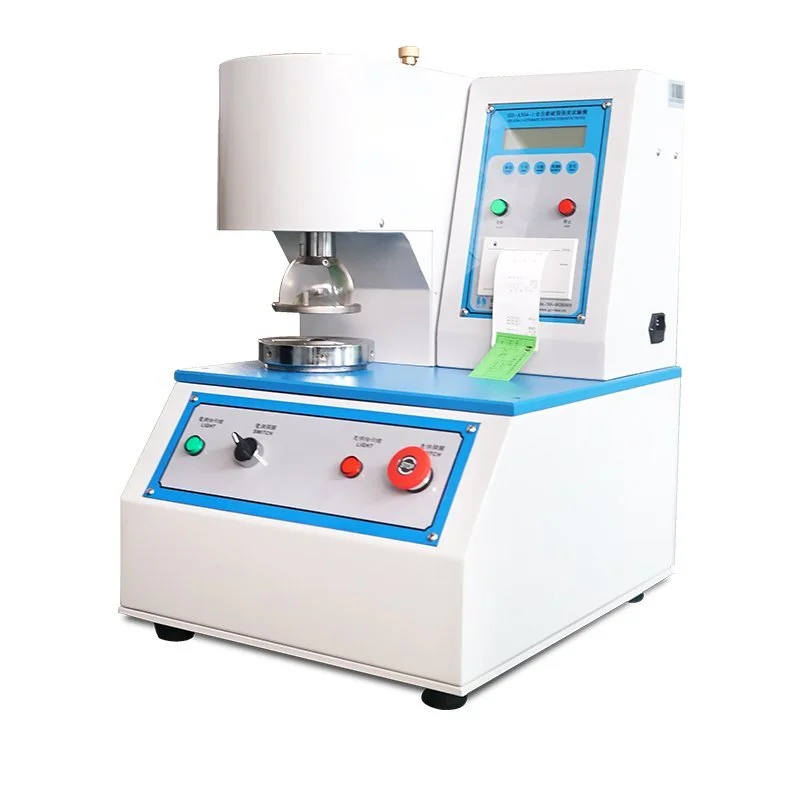

Film Bursting Testing equipment HD-A504-1
Film Bursting Testing equipment HD-A504-1
Burst Test Machine Video
Burst Test Machine Brochure
Specifications
Film Bursting Testing equipment
1.Anti-vibration Motor 1/8 HP
2.Operation Method:Automatic
3.paper,cardboard testing
The usage:
Film Bursting Testing equipment is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
Main technical parameters
Capacity (Optional) | High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2) |
Unit (switchable) | Kpa, psi, kg/cm^2 |
Accuracy | ± 0.5% |
Pressure Range | 250~5600kpa |
Speed of Compression | High Pressure 170± 10ml/min |
Specimen Clamping Force | >690kpa |
Oil | 85% Glycerin; 15% Distilled Water |
Sensing method | Pressure Transmitter |
Indicating Method & Display | LCD |
Material of the Ring | Stainless Steel SUS304 |
Opening in Upper Clamp | 31.5 ± 0.05 mm Diameter |
Opening in Lower Clamp | 31.5 ± 0.05 mm Diameter |
Motor | Anti-vibration Motor 1/8 HP |
Operation Method | Automatic |
Dimension (L×W×H) | 445×425×525 mm |
Weight | Approx. 70 kg |
Power | AC220± 10%, 50 Hz |
Power Capacity | 120W |
Standard Configuration | Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle |
Optional Configuration | Printer, Air Pump |
Design standard:
JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539
The Character:
it is applicable to test bursting strength for paperboard.
Advanced micro computer controller and digital processor ensure result precise.
Printer facility and fully detailed test reports.
Results of the tests are stored for viewing or for printing out as required.
User-friendly menu interface
Power protection ensure automatic record when power cut off.
Uses: Bursting strength tester is ideal for testing a wide range of materials like paper, paperboards, corrugated board and boxes, leather, filter cloth, rexine, ect, to determine their quality, strength and performance.
