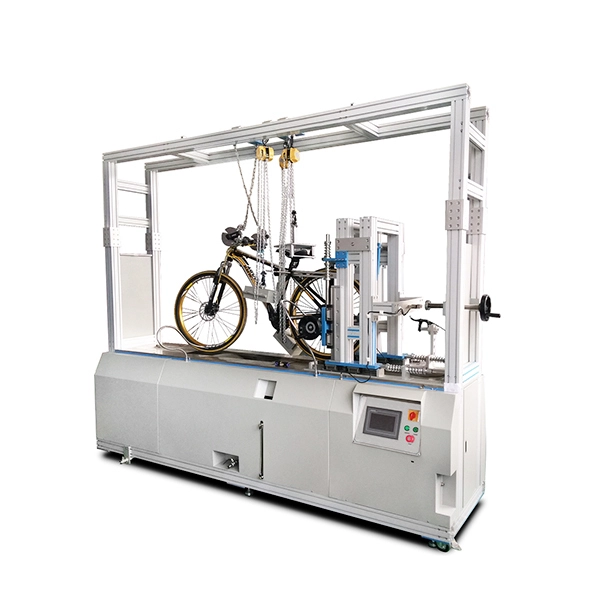

Dynamic road bike testing machine
Dynamic road bike testing machine
Product description:
Dynamic road bike testing machine is suitable to test bike’s run test& brakes performance test. bike testing machine is formed by two rollers with varied diameter and follows specification to install jump plates at bike’s seat post. pedals, bars, luggage carries, with load set to this tester. Adjust the distance between front and rear wheel base on the standard for complete cycles, constantly rotate the wheel is by 7-27km/hr and the bike is supposed to maintain its normal function, no part damage or crack is found. For brake test, follow the specification specified roller’s friction coefficient, wind speed and water-spray amount of loaded brake & handlebars to test the performance
Designed standard:
EN14764, EN14765 (City and trekking bicycle Part 4, Bicycle for young children Part 4)
Main technical:
| Model | Bike Brake Road Test Machine | |
| (Brake & Run test) | ||
| Adjust range between front & rear wheels | 860~1200mm/(600~1200 mm optional) / Customer specified | |
| Counter setting | diameter | 760/(560 optional ) / Customer Specified |
| power | Servo Motor + reducer + Clutch | |
| Testing speed(km/hr) | 7-27km/hr (special speed-upon request) | |
| Crank Drive Mechanism(optional) | Testing speed(km/hr) | 7-27km/hr (special speed-upon request) |
| Counter Weight | Seat Post(Kg) | 36 |
| Pedals(Kg) | 18 | |
| Handlebar(Kg) | 6.75 | |
| Luggage Carriers(Kg) | 10.18.25.according to luggage carriers, area 204X240 | |
| (Assembly Type) | ||
| Head Tube(Kg) | 14 | |
| Force to Brake Handlebars | ConformEN14764 Standard (Auto weight 40~180N) | |
| Water Spray | 4 ml/s | |
| Brake Force | Brake Force(N) | 2000 |
| Resolution | 1/200000 | |
| Accuracy | ±1 | |
| Power | 1-PH, 220±10%, 50/60HZ | |
| 3-PH, 380V±10%, 50/60HZ optional | ||
| Consumption | KW | 10 |
| Dimension(W x D x H) | Main Body(mm) | 3070x1200x2100 (Ref Only) |
| Cabinet(mm) | 500x600x1000 (Ref Only) | |
| Standard Accessories | Tool Kitx1, | |
| Operational Manual in English x1, | ||
| Testing dead weight, | ||
| Warranty Certificationx1 | ||
Brake test velocities and braking distance:
Ref: (EN14764)
Condition | Velocity(Km/h) | Brakes in use | Braking distance |
Dry | 25 | both | 7 |
Real only | 15 |
Quality guarantee
1) Quality assurance items
The guarantee period is one year
2) The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
①please keep this guarantee letter, if you lost it, please connect with us in a month.
②If this guarantee letter has been altered or it has no our stamp, it is useless.
3) The following conditions need to pay reasonably even in the assurance period:
①Natural reasons
②Operating mistakes
③Voltage is not fit for our operation instruction
④Repack it without our guides
⑤Damaged for borrowing to others
⑥Damaged for authorized machine modification
⑦Damaged for authorized calibration
⑧Authorized transshipment mistake
⑨Serve for long distance area
4) Attentions
①Any service in Taiwan or outside Taiwan, transport and travel fees shall be paid by the customer.
②Any service outside Guangdong, transport and travel fees shall be paid by the customer.
