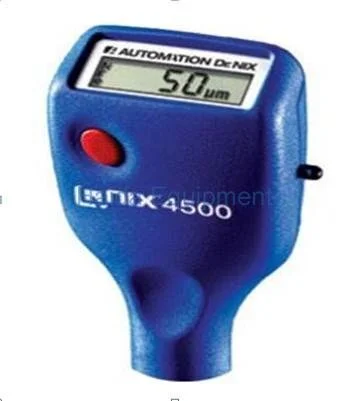

Coating Thickness Gauge

Brief Introduction Of Coating Thickness Gauge :

Coating Thickness Gauge: adopts magnetism and vortex for measurement, can test the thickness of the non-magnetic coating on the magnetic metal base or the thickness of the non-conductive coating on the no-magnetic base. This gauge is with little deviation, high stability, easy operation, and it is the essential instrument to guarantee the quality.

Main Parameters Of Coating Thickness Gauge:

Matrix: Fe / NFe probe forms: one / split

Display: LCD digital display

Measuring range: Fe :0-3000μm or 0-5000um

NFe :0-3000μm

Accuracy :0-50μm: ≤±1μm ,50-1000μm: ≤±1.5% ,1000-2000μm: ≤±2%,

2000-5000μm ≤±3%

Display Accuracy :0-99μm: 0.1μm ,99-999um: 1um, 1000μm above, 0.01mm

Working temperature: -10 - +60 ℃

Temperature compensation :0-50 ℃

Minimum base: 10mm × 10mm

Minimum curvature: convex, concave radius: 3mm/25mm

Thinnest substrate: Fe: 0.2mm, NFe: 0.05mm

Power source: two AA batteries

Weight: 110g

Size: 110 × 60 × 27mm

Our company

Introduction:

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

After-service

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer;
