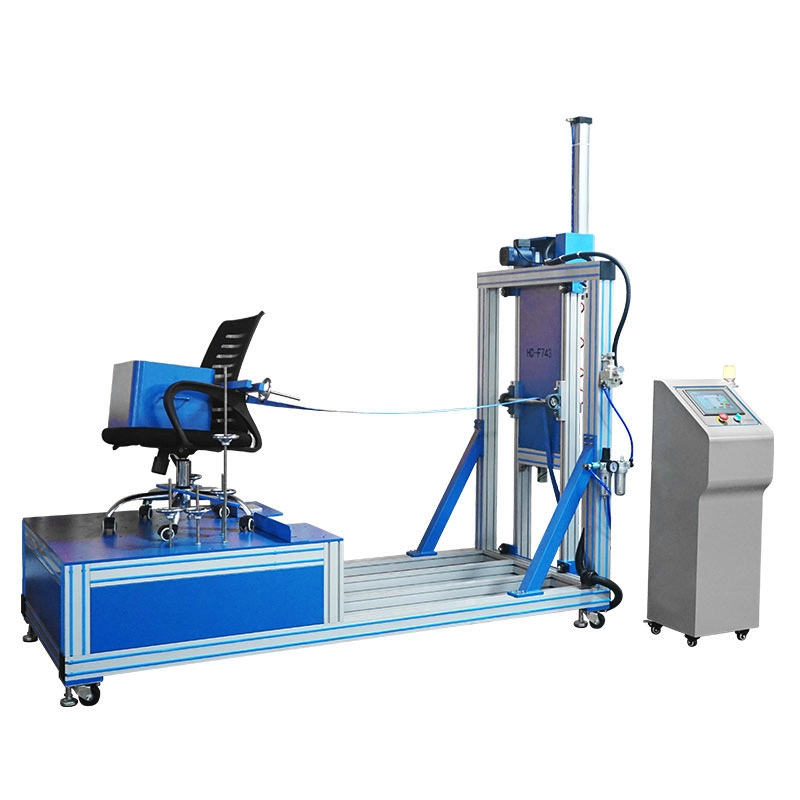

HD-F743 Chair Strength Durability Tester
Chair Strength Durability Tester
DESCRIPTION
The machine is designed to test office chair arm ( vertical and horizonal test ) and back strength. It with PLC controller, touch screen interface to input test parameters, test force and times can be set.
GENERAL SPECIFICATIONS
Machine Dimensions: (W x D x H) 2450mmx1000mmx2250mm
Compressed air requirement: 6-7kg/ cm2
Electrical Consumption: 0.2KW
Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)
Gross Weight: 380kg
APPLICATION STANDARDS: BIFMA X5.1-2017 section 5, 6, 12, 13, 14, 15
STANDARD FEATURES
Items | Description |
Capacity | 2kN Imported sensor (Durability test) 5kN Imported sensor (Strength test) |
Load weight | 109 kg (one set) |
Test speed | Durability test 5 ~ 20 times /min, Strength test 450mm/min |
Test force value | Durability test 450N ~ 1.5kN (cylinder driven) Strength test MAX 1.9kN (motor driven) |
Display mode | Touch screen interface |
Control mode | PLC control |
Setting time | 1 ~ 999,999 times (adjustable) |
Overall dimensions | |
Weight | About 250 kg |
Air | Acuity 0.6 MPa |
Power | 1∮, AC 220V, 50 Hz. About 200W |
Main test items | Chair back fatigue test and damage test, Chair armrest horizontal and vertical fatigue test and damage test |
