Bike running testing machine

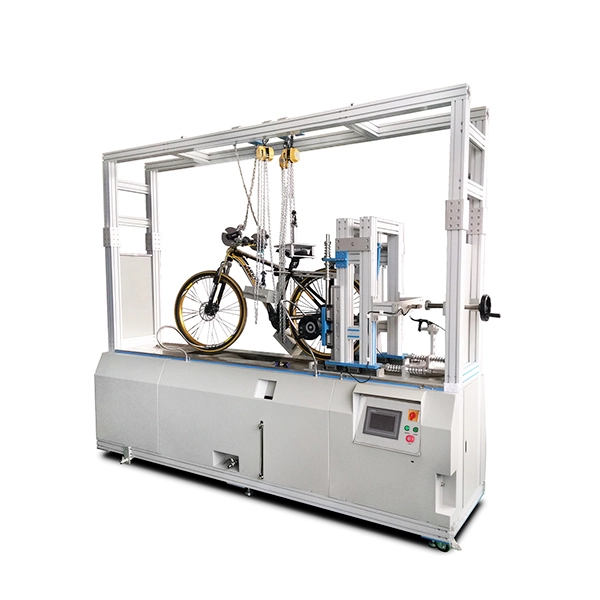

Dynamic road bike testing machine
Product description:
Dynamic road bike running testing machine mainly simulates the actual use of electric bicycles. Put the finished car tester on the platform, adjust the safety device according to the standard configuration and fixed weights, set the relevant parameters on the computer, and then perform the test.
Designed standard:
EN14764, EN14765 (City and trekking bicycle Part 4, Bicycle for young children Part 4)
Main technical:
Model | TT-1052DB | TT-1052B | TT-1052D | |
| Brake & run test | Brake test | Run test | |
Adjust range between front & rear wheels | mm | 860~1200/(600~1200 optional) / Customer specified | ||
Counter setting | diameter | 760/(560 optional ) / Customer Specified | ||
Jump block amount& combination phase | EN14764 standard |
| EN14764 standard | |
power | Servo Motor + reducer + Clutch | AC Reduce Motor+ speed Regulation+ clutch | ||
Testing speed(km/hr) | 7-26km/hr(special speed-upon request) | |||
Crank Drive Mechanism(optional) | Testing speed(km/hr) | 7-26km/hr(special speed-upon request) | ||
Counter Weight | Seat Post(Kg) | 36 |
Overall Weight 120 | |
Pedals(Kg) | 18 | |||
Handlebar(Kg) | 6.75 | |||
Luggage Carriers(Kg) | 10.18.25.according to luggage carriers, area 204X240(Assembly Type) | |||
Head Tube(Kg) | 14 | |||
Force to Brake Handlebars |
| ConformEN14764 Standard(Auto weight 40~180N) | ||
|
|
|
| |
Brake Force | Brake Force(N) | 700 ±1 | N/A | |
Resolution | N/A | |||
Accuracy | N/A | |||
Power | 3;220V;50HZ(3;380V optional) | |||
Consumption | KW | 10 | 5 | 8 |
Dimension(WxDxH) |
3030x1200x2900mm (Ref Only) | |||
Standard Accessories | Tool Kitx1, Operational Manual in English x1, Testing dead weigh, Warranty Certificationx1 | |||
Brake test velocities and braking distance:
Ref: (EN14764)
Condition | Velocity(Km/h) | Brakes in use | Braking distance |
Dry |
25 | both | 7 |
Real only | 15 |
Quality guarantee
1) Quality assurance items
The guarantee period is one year
2) The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
①please keep this guarantee letter, if you lost it, please connect with us in a month.
②If this guarantee letter has been altered or it has no our stamp, it is useless.
3) The following conditions need to pay reasonably even in the assurance period:
①Natural reasons
②Operating mistakes
③Voltage is not fit for our operation instruction
④Repack it without our guides
⑤Damaged for borrowing to others
⑥Damaged for authorized machine modification
⑦Damaged for authorized calibration
⑧Authorized transshipment mistake
⑨Serve for long distance area
4) Attentions
①Any service in Taiwan or outside Taiwan, transport and travel fees shall be paid by the customer.
②Any service outside Guangdong, transport and travel fees shall be paid by the customer.
