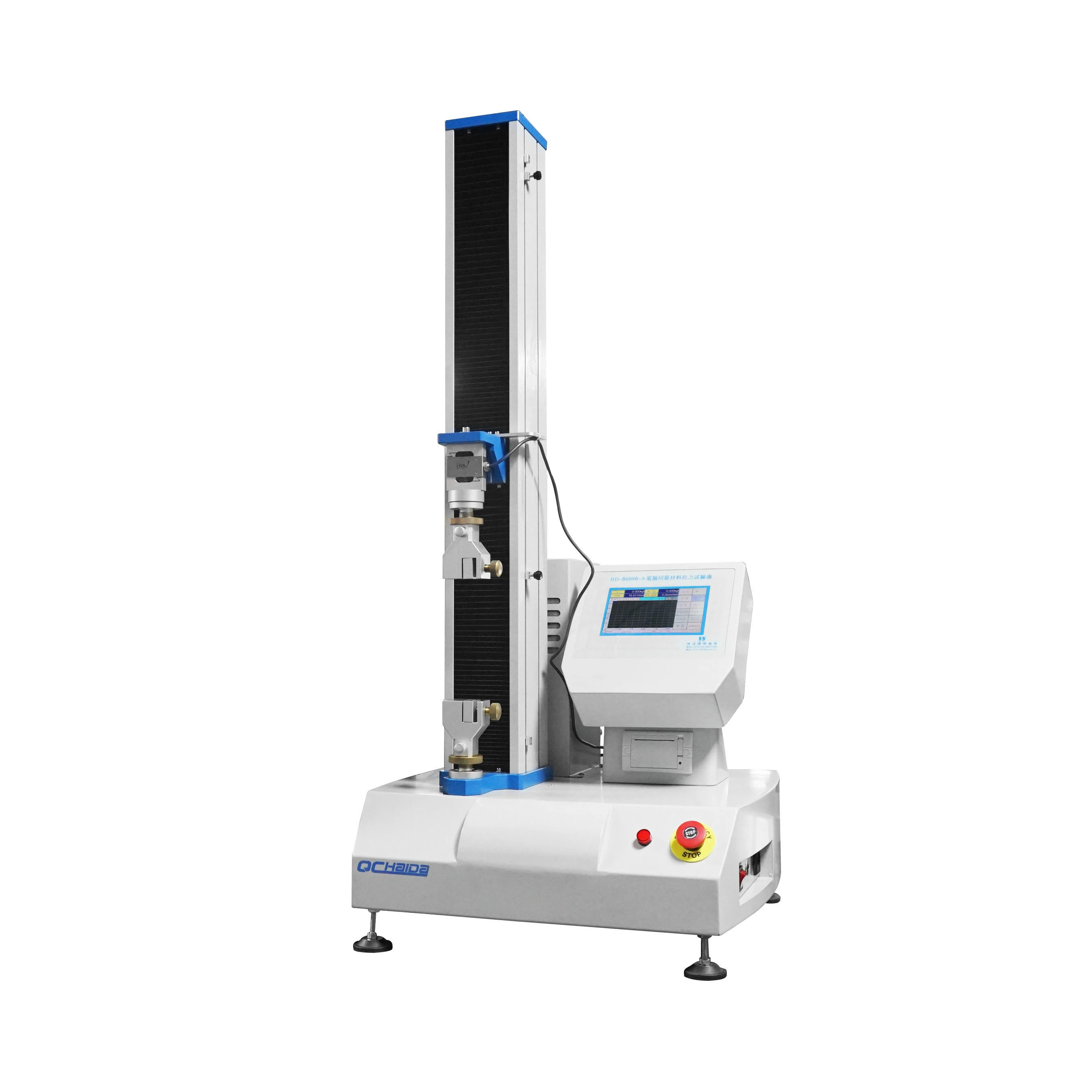

adhesive tape peel test units
adhesive tape peel test units Items
Specification
Sensor
Celtron load cell
Capacity
5, 10, 20, 25, 50, 100, 200kg
Unit Switchover
G, KG,
N, LB
Display Device
LCD or PC
Resolution
1/250,000
Accuracy
±0.5%
Max. Stroke
1000mm (including fixture)
Test Speed
0.1-500mm/min (adjustable )
Motor
Panasonic Servo Motor
Screw
High Precise Ball Screw
Elongation Accuracy
0.001mm
Power
1ø, AC220V, 50HZ
Weight
Approx.75kg
Accessories
One set tensile clamp, one set Lenovo
computer, one piece English software CD, one piece operation video CD, one
piece English user manual
Product introduction:
Adhesive tape peel test units is used to measure the adhesive strength between the bonded surface of two flexible substrates or a flexible and rigid substrate.
Product Features
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6.Adhesive tape peel test units can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
Applications:
Adhesive tape peel test units suitable for adhesives, adhesive tape, stickers, packaging tape,
medical adhesive tape, Electrical insulating tape, Coating with adhesive tape,
Anticorrosion tape, waterproof
adhesive tape, plastic adhesive tape,etc.
Standard:
The
applicable standards of adhesive tape peel test units including but not limited：GB/T 16491、GB/T 1040、HG/T 2580、JC/T 777、QB/T 2171、BS EN ISO 1798、GOST 18299、DIN 53357、ISO 34-2、BS 903、BS 5131、ASTM D3574
