adhesive peel testing machine
adhesive peel testing machine

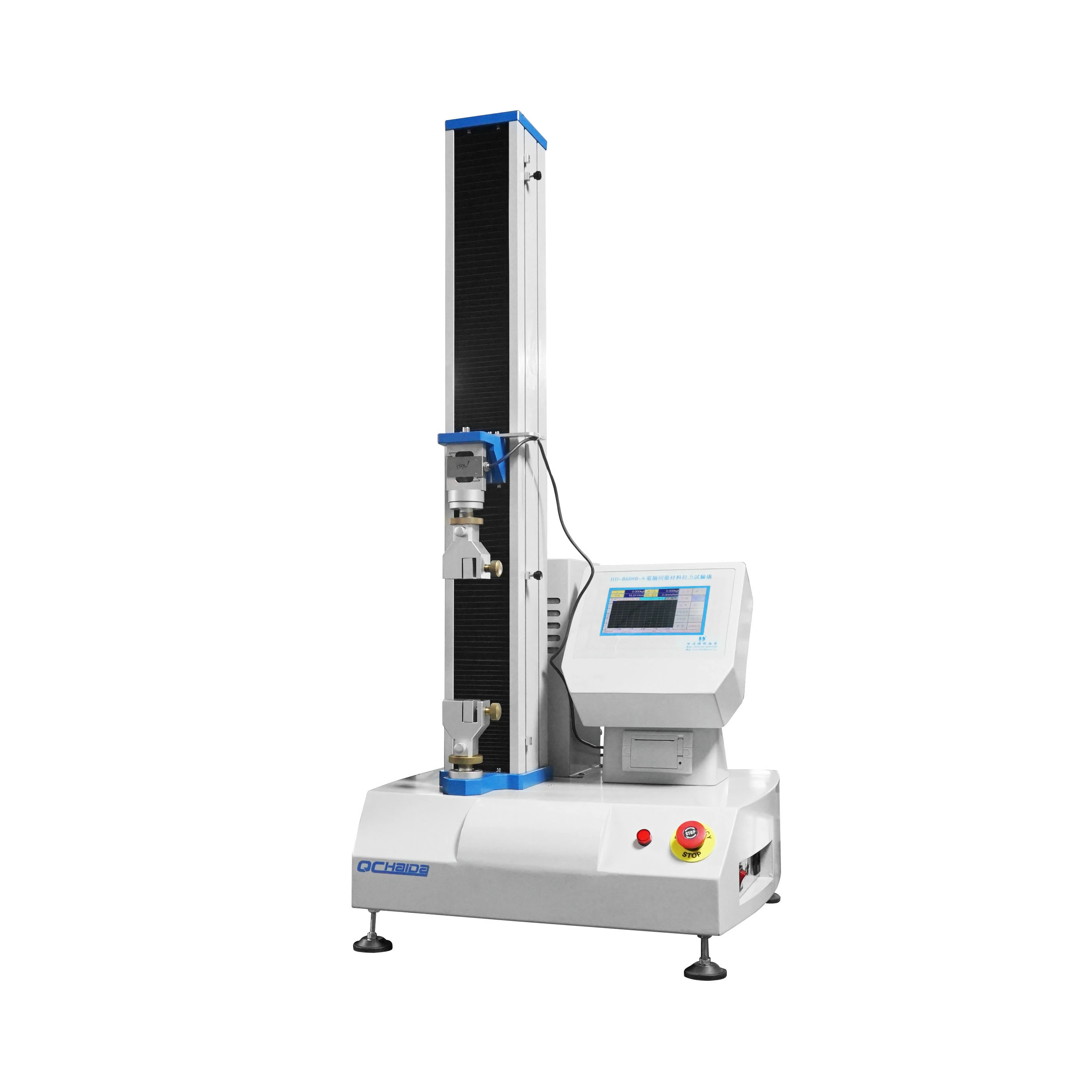

Product description:
Adhesive peel testing machine is universal test machines, especially configured to determine the adhesive peel strength or the strength of the adhesive bond between two materials. The test performed upon two flexible substrates that have been bonded together and placed into peel test grips such that one substrate sticks up and the other sticks down while the bonded area sticks out horizontally.
Item | Description |
Max. Force | 200 kg (2KN) |
Load cell | China brand load cell |
Control system | PC with windows 7 system |
Motor | AC Motor, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Stoke | 900mm including fixture |
Load cell Resolution | 1/100,000 |
Load Precision | within ±0.5% |
Test speed | 20~300mm/min (adjustable) |
Software | TM 2101 |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
1. Power switch: main switch of the
machine
2. Power
indicator light: The power indicator light will be on when power on. It will be
off when power off or electricity is not ok.
3. Emergency
switch: This key can help to stop the machine immediately when there is an
abnormality.
4. Speed adjuster: the speed adjust button to pull the upper fixture
5. Upper and lower fixture
6. Length
sensor: it will sensor the resistant strength when the lower panel goes upward,
and will output the strength to the display screen.
Applications:
Adhesive peel testing suitable for the T-peel, 90 degree peel, and the 180 degree peel adhesives, adhesive tape, stickers, packaging tape, medical adhesive tape, Electrical insulating tape, Coating with adhesive tape, Anticorrosion tape, waterproof adhesive tape, plastic adhesive tape,,,etc.
Standard:
The
applicable standards of adhesive peel testing including but not limited：
GB/T 16491、GB/T 1040、HG/T 2580、JC/T 777、QB/T 2171、BS EN ISO 1798、GOST 18299、DIN 53357、ISO 34-2、BS 903、BS 5131、ASTM D3574
