adhesive peel tester

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

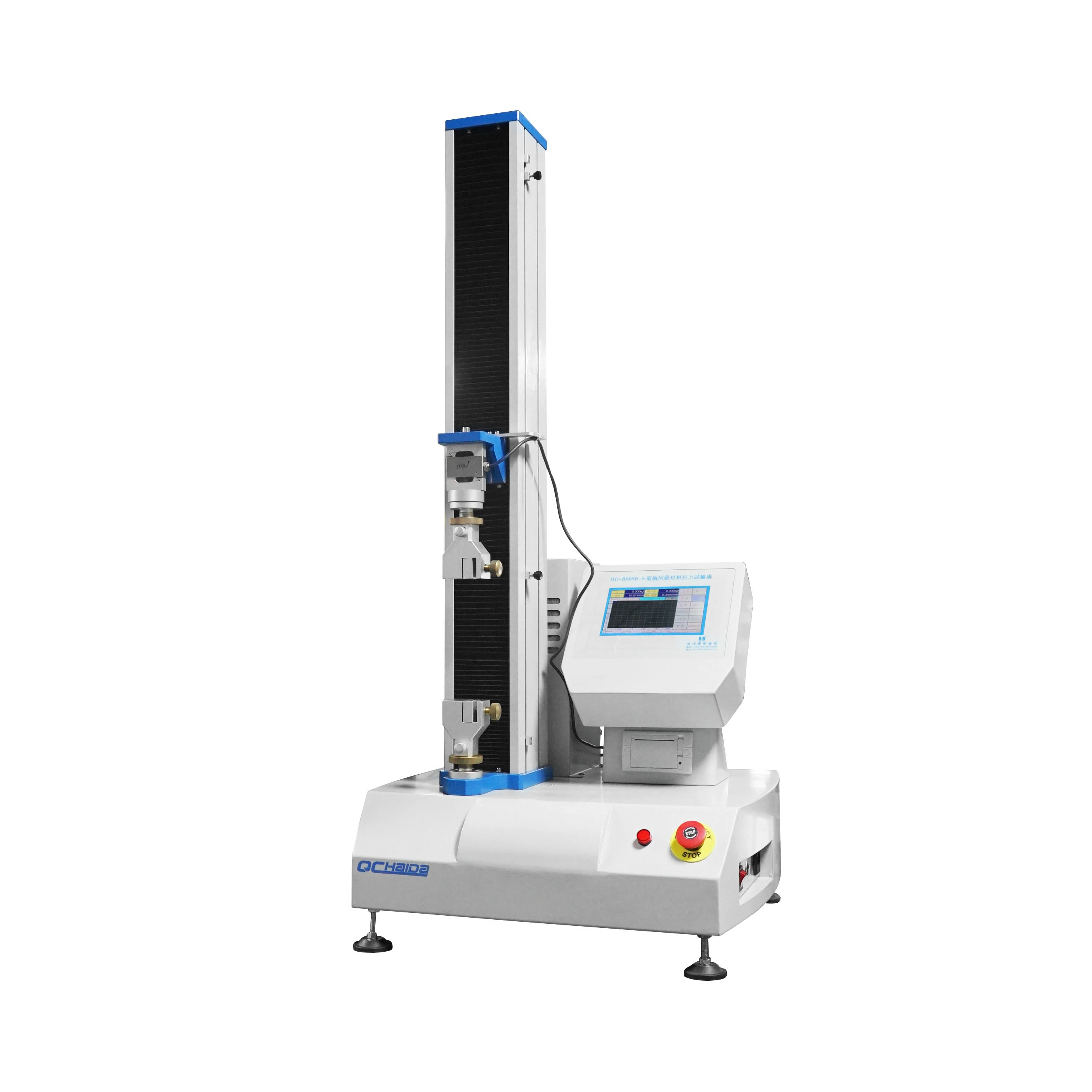

Adhesive peel tester

Product Introduction:
Adhesive peel tester is an multifunctional tester,accurate and effective peel tester testing with 90° and 180° tape peeling,peel tester be with servo motor drive, precision ball screw drive, the computer set the test speed directly for adhesive force the physical property of strength resistance. upper and lower peel fixture holds and peels adhesive tape ...etc.

products parameter：

Item	Description
Max. Force	200 kg (2KN)
Load cell	China brand load cell
Control system	PC with windows 7 system
Motor	AC Motor, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Stoke	900mm including fixture
Load cell Resolution	1/100,000
Load Precision	within ±0.5%
Test speed	20~300mm/min (adjustable)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Main features:

1. Power switch: main switch of the machine
2. Power indicator light: The power indicator light will be on when power on. It will be off when power off or electricity is not ok.
3. Emergency switch: This key can help to stop the machine immediately when there is an abnormality.
4. Speed adjuster: the speed adjust button to pull the upper fixture
5. Upper and lower fixture
6. Length sensor: it will sensor the resistant strength when the lower panel goes upward, and will output the strength to the display screen.

Applications of adhesive peel tester
Adhesive peel tester is suitable for 90° and 180° peel of adhesives, adhesive tape, stickers, packaging tape, medical adhesive tape,,,etc.

Standard（ including but not limited to below）:

ASTM B533 Peel Metal Coating Test Equipment
ASTM C794 Adhesion-in-Peel Elastomeric Joint Sealants Test Equipment
ASTM D1781 Climbing Drum Peel Test Equipment for Adhesives
ASTM D1876 T Peel Resistance Test Equipment for Adhesives
ASTM D2979 Tack Adhesive Testing Machine
ASTM D3167 Peel Resistance Adhesives Test Equipment
ASTM D3330 - Peel Adhesion Pressure Sensitive Adhesive Tapes
ASTM D429 - Rubber to Metal Adhesion Test Equipment
ASTM D5170 T Peel Strength of Hook and Loop Touch Velcro Fasteners
ASTM D6252 90 Degree Peel Adhesion Equipment for Pressure-Sensitive Label Stocks
ASTM D6862 90 Degree Peel Resistance Test Equipment for Adhesives
ASTM D903 180 degree Peel Strip Strength of Adhesive Bonds
ASTM F88 Seal Strength Testing Equipment for Flexible Barrier Materials
ISO 4578 Peel Resistance Testing Adhesives
FTM-1 Peel adhesion (180 degrees) test equipment
PSTC-101 Peel Adhesion Test Equipment for Pressure-Sensitive Tape (PSA)

adhesive peel tester 3 adhesive peel tester 4

tensile strength peel tester
