Rubber Compression Resilience Tester

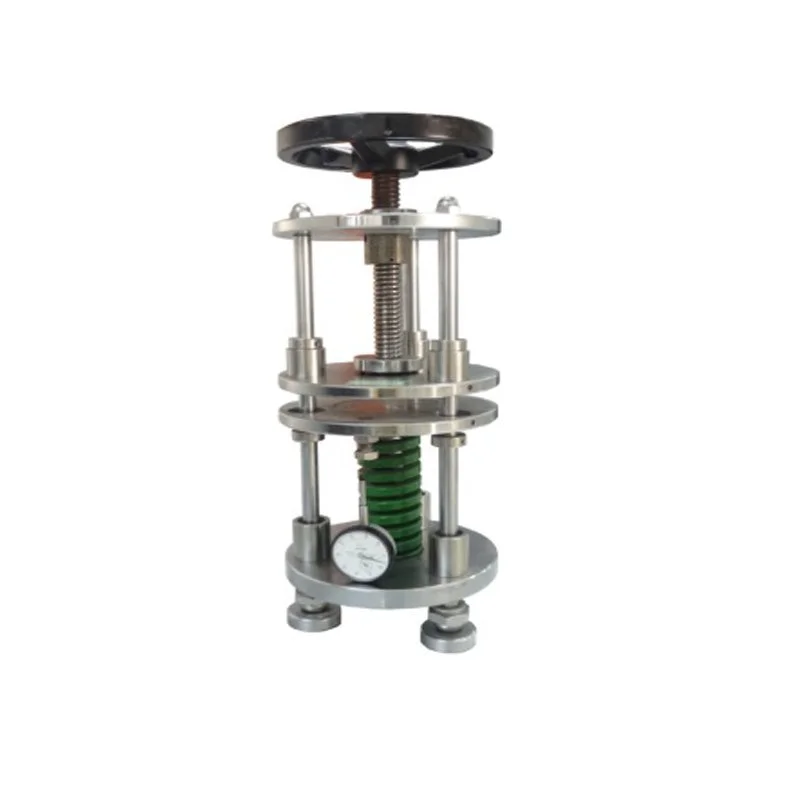

Rubber Compression resilience tester
Introduction
This Rubber Compression resilience tester is used to testing resilience of the rubber products after a certain and time and pressure.
Take the standard test piece, the distribution flated on the test plate, clamped
between two plates, the release of the specimen and cooling after prescribed time, respectively to measure
the center thickness of test film and then use the formula to calculate its compression resilience
Standard Features
|
Nos of sample pressure plate |
9 pcs φ97mm, 3mm thickness |
|
Max capacity |
500kgf |
|
Dial indicator |
50mm |
|
Measure sample Thickness |
9.52mm |
|
Sample size A |
MethodA:foam Ø29.0 mm, Non-foaming material Ø14.5 mm |
|
Sample size B |
Method 1:foam Ø25.4 mm, Non-foaming material Ø12.7 mm |
