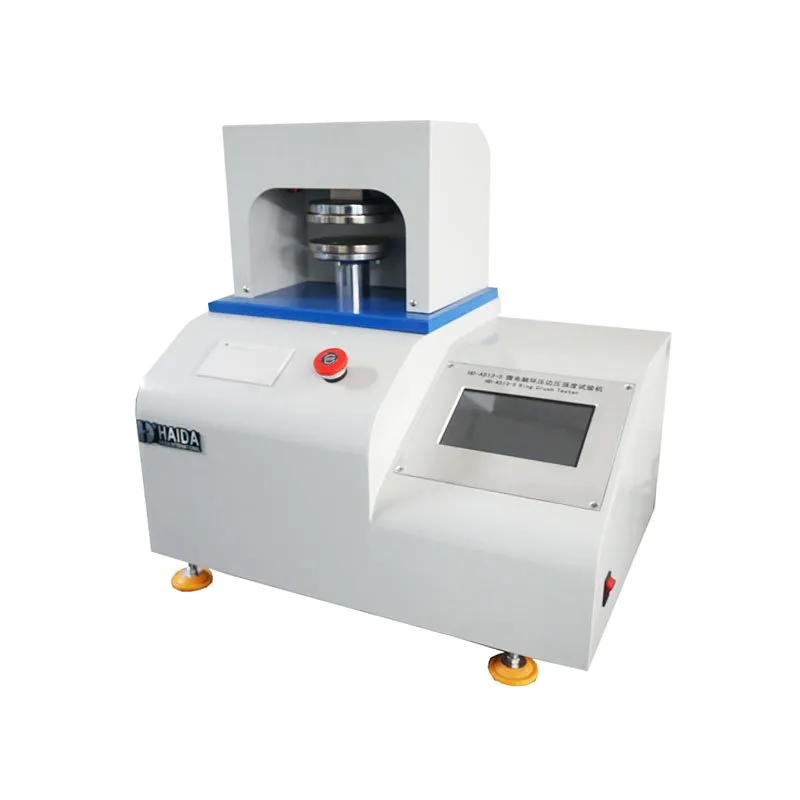

Paper Edge Crush Testing Machine can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc.
HIGH-PRECISION FORCE SENSOR:
The upper and lower limit protection devices are used to automatically return to the position after the overload protection testAutomatically judge the crushing force and save the test data
COLOR TOUCH SCREEN WITH CURVE DISPLAY:
The control software can switch freely in both Chinese and English languages A variety of force value units to choose
Structure Features:
Equipped with precision ball screw, aluminum alloy panel, the instrument is durable
Function Features:
After testing, the max force value during the test can be automatically displayedand 50 test results can be recorded and saved
Capacity (Optional) | 10, 20, 50, 100, 200 kg |
Resolution | 1/100,000 |
Precision | < 0.5% |
Operation Mode | Computer |
Display Mode | LCD |
Platen | 100×100 mm or depending on the diameter of the flat crush sample |
Compressed Space | 500 mm |
Platen Parallelism | ± 0.05 mm |
Ring Crush Sample | 152×12.7 mm |
Edge Crush Sample | 25×100 mm |
Test Speed | 12.7 mm/min |
Dimension (L×W×H) | 790×510×1060 mm |
Weight | Approx. 51 kg |
Power | AC220V, 1.5A |
Professional force sensor, the measureddata more accurate
Simple operation, the Chinese and English switch, easy operation
With the offline printing functionyou can view the test data more clearly
Timely warning of abnormal ECT data and pressurecondition of the sample
