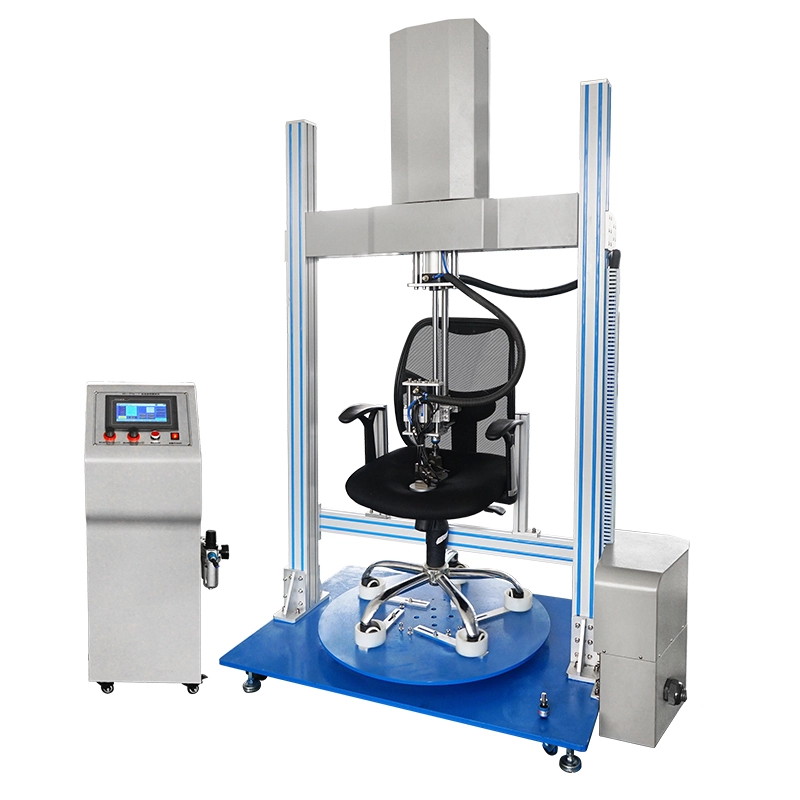

    Chair Seating Cyclic Impact Testing Machine

    HD-F731 Chair Seating Cyclic Impact Testing Machine 2 Chair Seating Cyclic Impact Testing Machine



    The usage

    High Quality Chair Seating Cyclic Impact Tester is a two station testing equipment .  Office Chair Rotating Testing Machine is used to test the durability of the seat of the chair .

    Specifications

    According to test Standard :  Bifma × 5 . 1-2011 and Section 8 11 . 3
    Applicability :  This test applies to all types of chairs .
    Purpose of Test :  to evaluate the ability of a chair to withstand heavy impact forces on the seat .
    This tester is designed for dynamic and cyclic durability seat test .

    Used to test the pressure at the bottom of the rod thrust bearing life

    Rotation frequency range :  5 ~ 15CPM

    Adjustable seat surface sand bag loading force  ( weight 113kg )

    Testing Seat height range  : 350-800mm

    The maximum diameter of the chassis can be tested :  less than 740mm


    Specifications


     Office Chair Rotating Testing Machine

    Mode

    HD-F731

    Counter

    0-999 , 999 ,  memory ,  output control

    Impact sandbags diameter

    16 inch 125 pounds standard sandbbags

    Static pressure mould diameter

    8 inch ,  165 pounds briquetting

    Impact speed

    10-30 times/minute or specified

    Static pressure speed

    10-30 times/minute or specified

    Cylinder stroke

    0-300mm

    Rail height

    90-135cm

    Machine size

    270*85*80cm

    Power

    AC220V ,  3A

    BIFMA requirements

    impact 100000 times+ static pressure 20000 times ( left )
    +static pressure 20000times  ( right )
