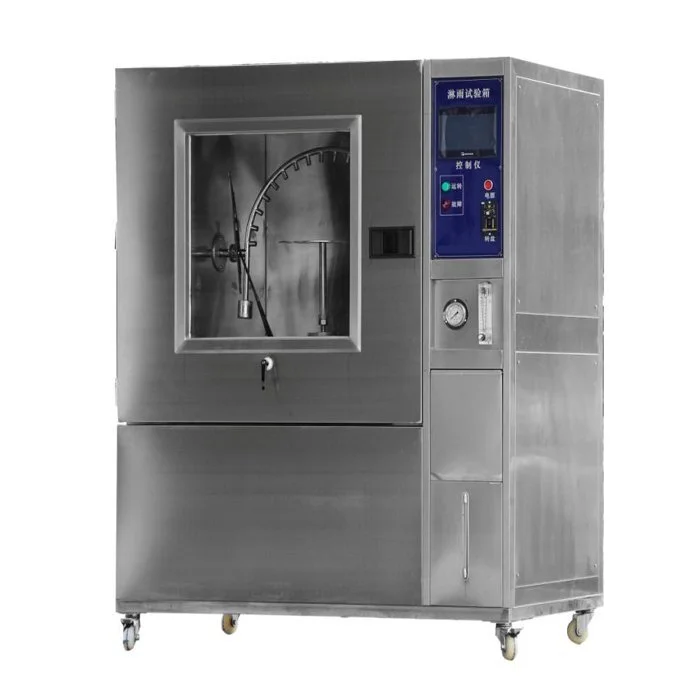

Ipx3 4 Water Spray Test Chamber
Ipx3 4 Water Spray Test Chamber
product introduce
Ipx3 4 Water Spray Test Chamber is suitable for electric and electronic products, materials, components, etc. in the rain, adaptability and reliability test under the temperature conditions. It can also be used for external lighting and signaling devices, and automotive lamps shell protection
STANDARD FEATURES
Item | Specification |
Internal dimension | (W*D*H)1000*1000*1000mm |
External dimension | (W*D*H)1300*1100*1700mm |
Oscillating tube | Radius 400mm |
Oscillating angle | IPX3: spray ±60° from vertical line to each side, total 120° IPX4: spray ±180° from vertical line to each side, total 360° |
Oscillating speed | IPX3: 2*120° for 4s IPX4: 2*360° for 12s |
Spray nozzle | Diameter: 0.4mm, removable Ensure the water sprays in a line and without tolerance |
Distance between two nozzles | 50mm |
Turntable dimension | 500mm |
Turntable rotation speed | 1-3 cycles/min |
Water flow of each nozzle | 0.07 L/min +5% |
Test duration | 1~999,999min, adjustable |
Pressure gauge | 80-150Kpa |
Material | Chamber - Stainless steel ; Spray nozzle - Brass |
APPLICATIONS& FEATURES
1. To be used in testing external lighting and signal device and vehicle lamps shell protection.
2. Cyclic test includes conditions: heating, watering
3. The internal chamber has lighting device
4. Rain time, rain interval time and rainfall strength can be adjusted and controlled separately.
