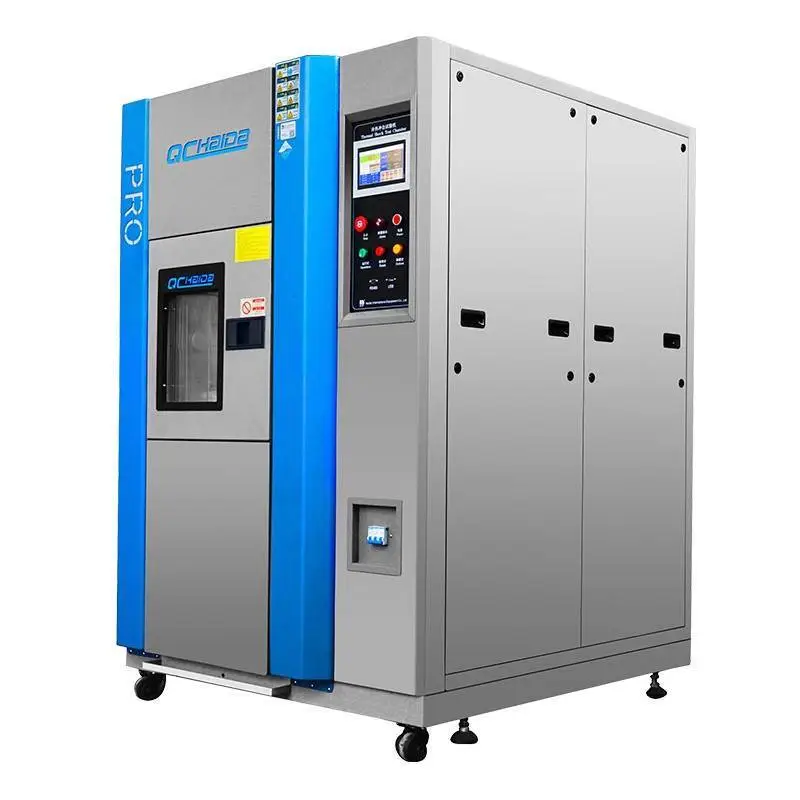

LED lights Thermal Shock Test Chamber

LED lights Thermal Shock Test Chamber

 :Thermal Shock Test Chamber Video

Product Introduction:

LED lights Thermal Shock Test Chamber is used to test led solar lights, garden lights, buried lights, tunnel lights, car lights, fountain lights, the display ...etc LED lights series in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.

LED lights Thermal Shock Test Chamber Features:

1. Perfect appearance and easy to operate.

2. Imported LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.

3. Two chamber structures, high temperature chamber and low temperature chamber, control automatically, stay and switch time adjustable.

4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…

5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.

6. Cold and hot shock temperature recover within1 minute, which complies with MTL, IEC, JIS, GJB and other international standards.

LED lights Thermal Shock Test Chamber Main parameters:

Controller:

Operate interface: 6" color PLC controller, touch screen

Program memory capacity: 100 groups (modify by operator)

Setting range: Time: 1 minute ~ 99 hour 59 minute, cycles: 1~ 9999cycles

Resolution: temperature: 0.01 ℃

Input: T thermocouple

Control method: PID auto calculation control

Additional functions:

Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time

Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.
