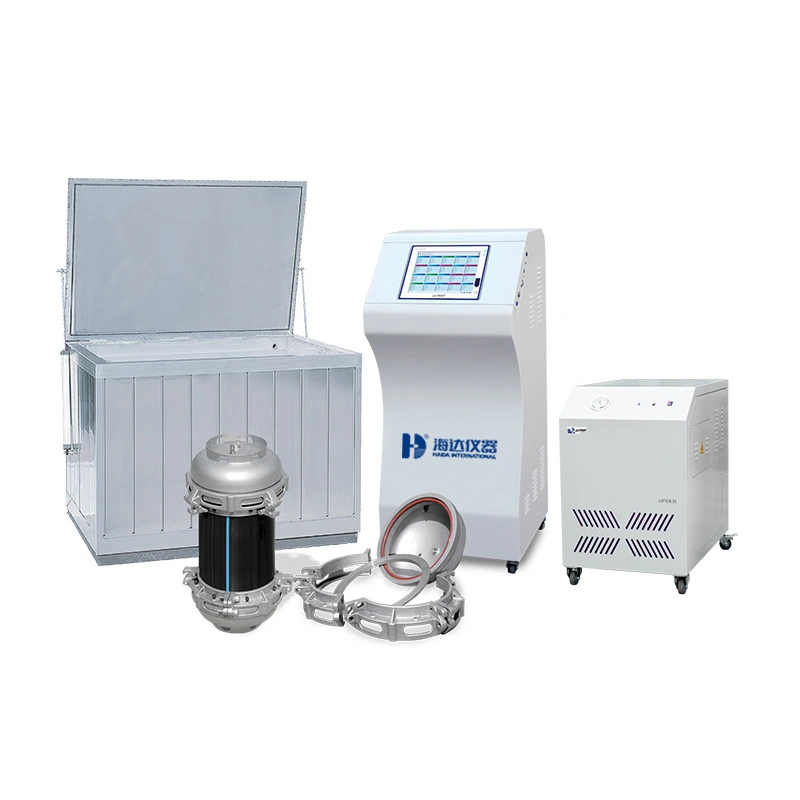

Plastic pipeline Hydrostatic Pressure Tester

Hydrostatic Pressure Tester is mainly used to determine the resistance of thermoplastics pipes and short-time hydraulic burst to constant internal water pressure at constant temperature.

Model:

HD-R901

Inquiry

Write a Review

Product Description

Plastic pipeline Hydrostatic Pressure Tester is mainly used to determine the resistance of thermoplastics pipes and short-time hydraulic burst to constant internal water pressure at constant temperature. It is applicable to thermoplastic pipes intended for the conveyance of fluids. It is suited to various pipe specimens.

Test standard

ISO1167, ASTM D1598, ASTM D1599, ISO10508 and the equivalent.

Product Specifications

Model	HD-R901-(ABB)
Max. pressure (A)	0: 10Mpa, 1: 16Mpa , 2: 20Mpa , 3: 25Mpa … Max. pressure can up to 200Mpa
Test stations (BB)	03: 3 stations, 05: 5 stations, 10: 10 stations, 15: 15stations … Max. test stations number can up to 100 stations
Pipe diameter range	Φ2-Φ2000mm
Pressure resolution	0.001Mpa (0.01bar or 1PSI)
Timing range	0-10000h
Time resolution	1s
Timing mode	Counter-up, counter-down
Control method	LED + PC	Touch screen (Industrial PC)
Test result storage	Storage and print through PC	Data exported to USB, then print by another PC
Pressure supply unit	Select suitable pressure supply unit for different models of pressure control unit.
	1. With the property of high pressure and capacity;
	2. Automatic water compensation to avoid the pump being damage due to lack of water;
	3. Low noise;
	4. Protection system for electricity leakage or water shortage.
Power supply	Pressure control unit: (220-15%～220+10%)VAC 50Hz 0.5KW
	Pressure supply unit: (380-15%～380+10%)VAC 50Hz 5.0Kw Three phase five wire

Products Advantages

Plastic pipeline Hydrostatic Pressure Tester 3

Best Quality

We have a number of professional suppliers which we have worked with over the 35 years, Our custom made furniture product manufacturing, Quality, delivery and Customer service.

Plastic pipeline Hydrostatic Pressure Tester 4

Reasonable Prices

We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.

Plastic pipeline Hydrostatic Pressure Tester 5

QC Team

We have our QC team here to help customers to check the goods throughout custom made furniture production and before loading with an AQL.

High-End Look

When paired with a loveseat or chair, this sofa sets the scene for everyday luxury. Style tip: add a faux fur throw in white for pure delight.

Product Characteristics

1. With the functions of specimen pre-treatment, real time monitoring，test data storage, data power-off protection (memory) and recovering when powered on, etc.

2. It is intelligent to distinguish the size and material of specimen, then provide perfect pressure rising solution and algorithm.

3. For the pipes with big rate of expansion has the properties of rapid pressure rising rate and steady at constant temperature.

4. Self-developed solenoid valve greatly raises its working life, further maintenance is not needed.

5. Friendly display interface provides multi-languages to meet the requirements of customers all the world.

6. Protective measures are from electric part, mechanical part as well as software.

7. Testing data memory time for pressure control unit: 7 days (offline).

Software Interface:

Fast and accurate: test can be completed in 10-160S

This machine is applicable to specimens, whose hardness range is from 30 IRHD to 85 IRHD. Equipped with devices for elastic materials and foaming materials to meet different testing requirements.

radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)

It adopts an arc dial display with 100 equal parts, owning higher accuracy relative to vertical scale.

It can display the maximum rebound value and reset the pointer manually after the test is completed.

The clamping thickness of the test piece is adjustable within the range, which is capable of clamping materials in different thicknesses.

The Simple structure facilitates easy operation and convenient maintenance.
