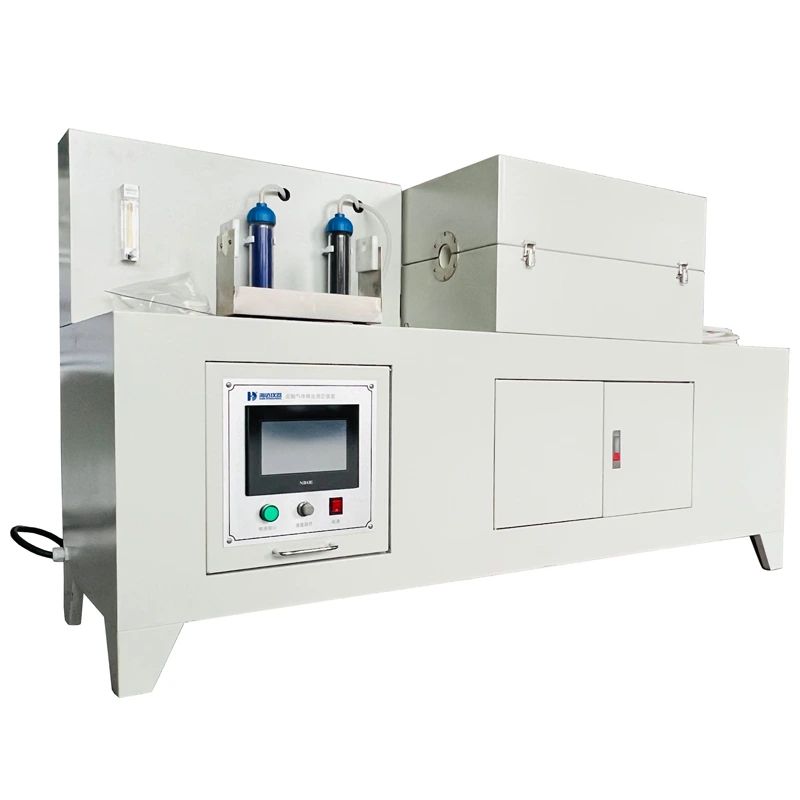

Halogen Acid Gas Emission Measurement Apparatus

This apparatus measures the pH value, acidity, and conductivity of gases emitted during the combustion of materials from cables or optical cables. It is used to determine the total halogen acid gas content in low-halogen and halogen-free flame-retardant cables and to assess gas acidity through pH and conductivity measurements.

Model:

6019-HD

Inquiry

Write a Review

Product Description

Compliance Standards:

GB/T 17650.1 (Test methods for gases evolved during combustion of materials from cables or optical cables)

GB/T 17650.2-8

IEC 60754-1:1994, IEC 60754-2:1991

GB/T 19666-2005 (General rules for flame-retardant and fire-resistant wires and cables)

GA 306.1-2007 (Section 6.3.4), GA 306.2-2007 (Section 6.3.4)

UL 2556-2007 (Sections 9.10 and 9.11)

Halogen Acid Gas Emission Measurement Apparatus

Product Specifications

Model	6018-HD
Control System	7-inch color LCD touchscreen + PLC (Programmable Logic Controller), with test data printer.
Display System	Real-time monitoring of ignition time, flame application time, afterflame time, afterglow time, and test cycles. Controls include fixture adjustment, gas supply, and ignition.
Chamber Volume	≥0.75 m³, with glass observation door
Test Timing	Adjustable: 0–99 minutes 99 seconds for: Flame application time, Afterflame time, Afterglow time
Burner Angle	Adjustable: 20°, 45°, 90° (vertical)
Burner Specifications	Nozzle inner diameter: Ø9.5±0.3mm; Effective length: 100±10mm; Equipped with air adjustment holes.
Fuel Gas	Industrial-grade methane (≥98% purity, user-provided).
Flame Height	Adjustable: 20mm–175mm (standard-compliant)
Key Features	Integrated lighting, exhaust system, gas flow/pressure regulators, pressure gauge, U-tube manometer, and sample fixture.
Power Supply	AC 220V, 50Hz
