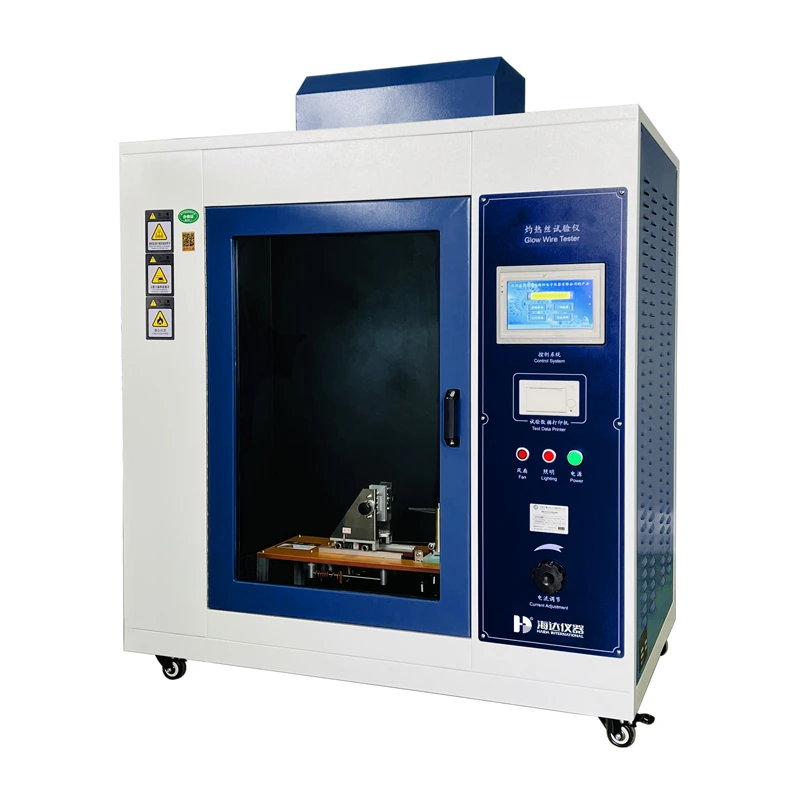

Glow-Wire Tester

The glow-wire test simulates thermal stress or ignition sources caused by overheated components or overloaded resistors in a short period, assessing fire hazards for parts or components under fault or overload conditions.

Model:

6002-HD

Inquiry

Write a Review

Product Description

It applies to plastic and non-metallic insulating materials used in electrical and electronic products, components, and household appliance parts, such as switch housings and relay sockets.

This tester features a PLC + color LCD touchscreen control system with an intuitive interface and includes a built-in printer for recording test conditions and results.

Compliance Standards:

IEC60695-2-10 / 11 / 12 / 13 - 2013, GB/T 5169.10, GB/T 5169.11, IEC 60884-1, GB 2099.1, IEC 60335-1, GB 4706.1, VDE 0620-1

Product Specifications

Model	6002-HD
Control System	7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with a test data printer.
Display System	7-inch color LCD touchscreen for setting and displaying glow time (Ta), ignition time (Ti), flame extinction time (Te), glow-wire temperature, print interface, and operational status.
Chamber Volume	≥0.5 m³, with a glass observation door.
Internal Illuminance	Less than 20 Lux.
Glow-Wire Temperature	Adjustable from ambient + 10°C to 1000°C, measured using a Ø1mm nickel-chromium armored (K-type) imported thermocouple.
Force Applied to Sample	0.95 ± 0.10 N, with a penetration depth limited to 7.0 ± 0.5 mm (automatically sensed).
Glow-Wire	Made of nickel/chromium alloy (>77% Ni / 20±1% Cr). The diameter before bending is 4.0 ± 0.07 mm, with other dimensions manufactured to standard tolerances.
Movement Speed of Glow-Wire Tip	10 mm/s to 25 mm/s (approaching or retracting from the sample).
Wooden Board	White pine board, thickness >10 mm, placed 200±5 mm below the sample contact point.
Timer	Adjustable range: 0–999.9 seconds, accuracy: ±0.1 seconds. Glow time (Ta) is settable, while ignition duration (Ti) and flame extinction time (Te) are recordable.
Key Features	Automated control system. After initiation, the sample carriage automatically moves the specimen to the glow-wire and retracts after the set glow time. Features black interior, ventilation, lighting, and digital displays for easy observation and recording.
Power Supply	AC 220V, 50Hz.
