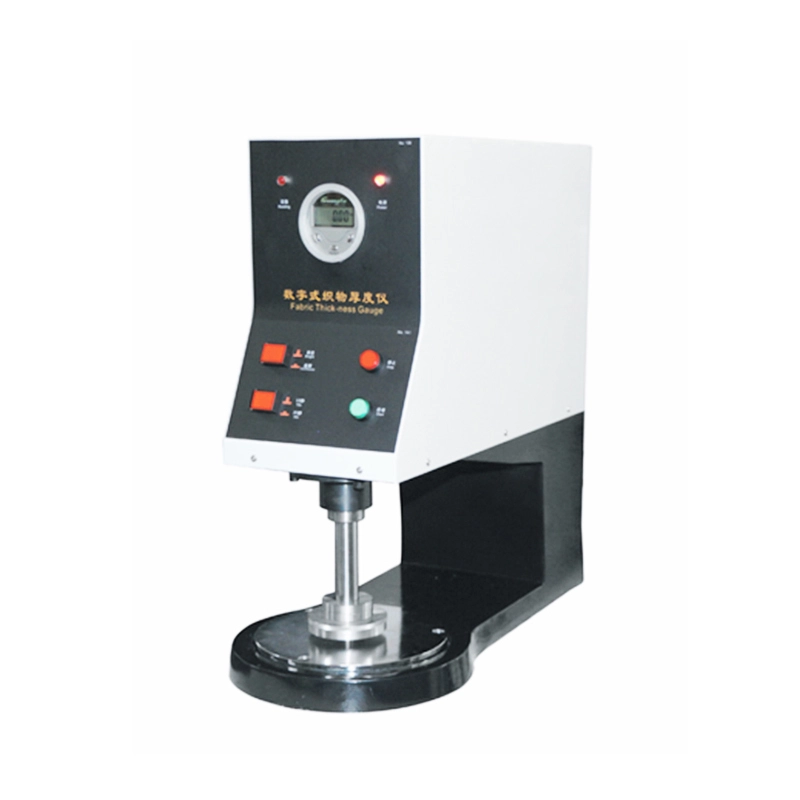

Fabric Thickness Tester
Fabric Thickness Tester
Application
Used to determine the thickness of various textiles, textile products and nonwovens.
Standards
ISO3616 And ASTMD1777
Feature:
1. The presser foot is made of 316 stainless steel.
2. The four corner deviation of the presser foot is within the error range.
3, The structure design is reasonable, high sensitivity, to ensure that the balance is within the scope of the verification regulations.
4, The test range is large, up to 25mm.
Technical parameters
Measuring thickness range | 0.01 ~ 25.00mm, LCD display resolution: 0.01mm |
Presser foot diameter and area | Φ11.28mm,100mm2;Φ50.48mm,2000mm2;Φ56.42mm,2500mm2;Φ112.84mm,10000mm2. |
pressure weight | 5cN, 10cN, 100cN, 400cN, 1000cN a total of 5 kinds 5cN weight only 1 10cN weight only 2 50cN weight only 2 100cN weight only 1 400cN weight only 1 1000cN weight only 1 |
weight | Appro 40kg |
Dimension | 700*600*300mm |
Mendatory accessories | weights |
Thickness range | 0-25mm |
Pressure foot | 1.129’’ diameter under a load of 0.6 Psi |
