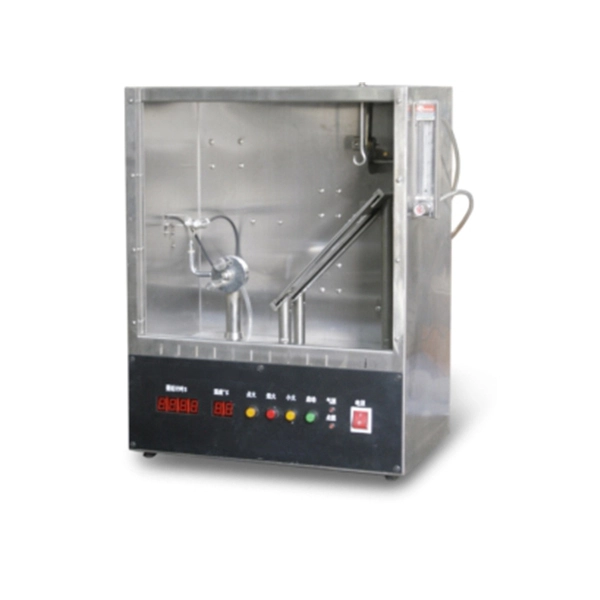

Equipment Details for 45° Flammability Tester
EQUIPMENT DETAILS FOR 45°Flammability Tester
Application
Flammability Tester is used to test the burning properties of textile fabrics, such as clothing fabrics, decorative fabrics, tent fabrics, etc.
Testing standard
GB/T 14644 Textiles - Determination of burning rate in 45° direction
16CFR 1610 American clothing fabric flame retardant standard
ASTM D1230 for textile flammability testing
Products features
1. Stainless steel making, and the experiment cabin door is made of high temperature resistant and explosion-proof glass to ensure the safety of the test;
2. Microcomputer program control of the gas supply system, with two gas source connection methods, which can be connected to household gas;
3. Adopt imported gas source main valve, thermal sensor, spark generator, stable and accurate test;
4. The ignition device is automatically ignited, the flame size and height can be adjusted according to needs;
Technical parameters
Ignition method | manual |
Test room size | 368 × 216 × 356mm |
Rack angle | 45° |
Flame spread time setting range | 0.01s-99.99s |
The surface ignition time of the sample is | 1.0s±0.05s |
Dimensions | 525 × 220 × 420mm |
Weight | 30kg |
Power source | AC220V 50Hz |
