Environmental Test Chamber Series

An environmental test chamber, also known as a climate chamber or climate chamber, that replicates the environmental conditions in which machinery, materials, devices or components may be exposed. Detects performance of biological goods, industrial products, materials, electronic devices and components in different extreme environments.

Sush as Extreme temperature, sudden and extreme temperature changes-thermal shock, humidity or relative humidity, cyclic corrosion test (salt frog), IPX rain, aging weathering, exposure to sunlight(uv aging,xenon aging,ozone aging ).

Haida Environment Box series products meet IEC, ISO,GB, EIA, ASTM, IPC, ISTA, JEDEC, SAE,JIS, MIL and other international standards.

Applied Materials (Industry): Electronic products, fabrics, leather, rubber, furniture, hardware, wire and cable, automobiles, composites, circuit boards, optical components, etc.
Environmental Test Chamber Series: Climate chamber;Thermal shock chamber;UV aging weathering chamber; Xenon aging weathering Chamber;Ozone aging test chamber; IPX waterproof test chamber;sand test chamber

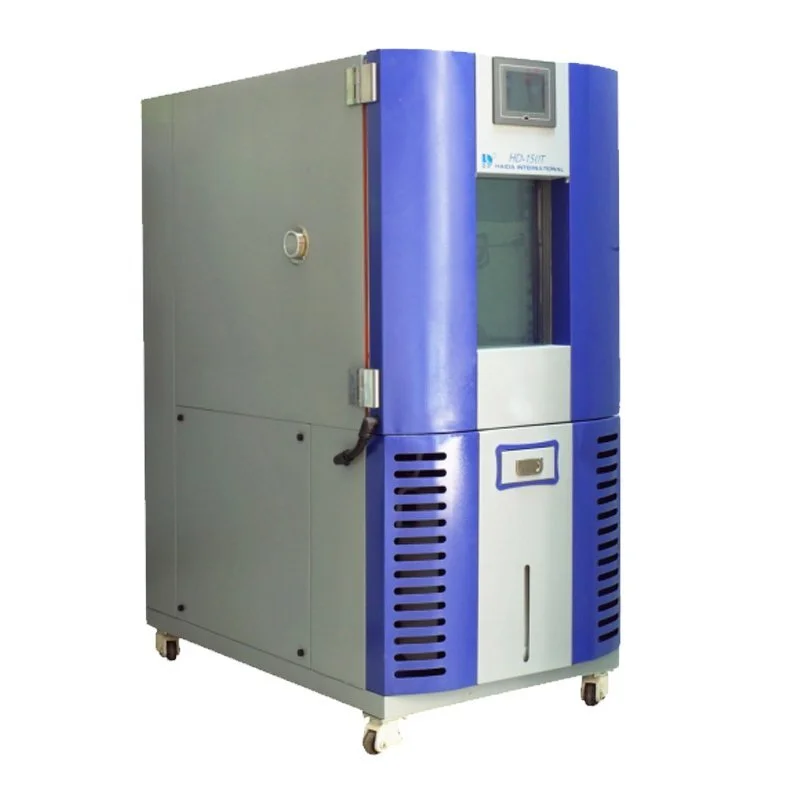

Climatic chamber - environmental test chamber

Climatic test: temperature test, humidity test, cooling-off test, heating-up test, moistening test and drying test…

Internal dimension (W*D*H): 400*500*500 mm (can be adjustable)
Temperature range: -70~+150℃

Humidity range: 20~98%RH (Refer Image below)

Controller: LCD touch screen, programmable control

Chamber material: SUS#304 stainless steel, mirror finished

Thermal shock chamber - Temperature cycle impact test chamber

Inner dimension (W*D*H):500*450*450mm (can be adjustable)

Temperature range:-40 ~ +80℃

Heating speed:+60→+100℃ about 10 minutes

chamber material:SUS#304 stainless steel

Setting range: Time: 1 minute ~ 99 hour 59 minute, cycles: 1~ 999 cycles

Complies with MTL, IEC, JIS, GJB and other international standards

Control method: P.I.D control
                                -- >>Get a Free Quotation    >> More Detail

UV aging weathering test chamber - weathering test chamber

Chamber dimension (W*D*H):1300*500*1460mm(can be adjustable)

Temperature range: RT to 70℃ ; Humidity range: ≥75%RH

Controller: Programmable controller, LCD touch screen

Test cycle setting: Exposure, condensation and water spray test cycle

Water spray cycle: Spray 18mins in every 120mins / spray 12mins in every 60mins

UV lamps:Imported Atlas UV: 315-400nm (8pcs, 1600h lifetime)

Specimen Size:75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm
                               -- >>Get a Free Quotation    >> More Detail

Xenon aging test chamber

Internal Dimension (W*D*H): 700*500*600mm(can be adjustable)

Chamber humidity range:55%~90% RH

Chamber temperature :35℃~90℃

Control system: LCD programmable controller

Capacity: 100 groups program, 99 cycles.
                                -- >>Get a Free Quotation  >> More Detail

Salt spray test chamber - corrosion frog chamber

Internal Size (W*D*H) : 900*600*500mm (can be adjustable)

Sample tray: Diameter 10mm glass fiber rod, anti-rust

Temperature Range: Room temperature ~ 55℃

Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃

Test criteria: ASTM B117-08, ISO 9227...
                             -- >>Get a Free Quotation    >> More Detail
