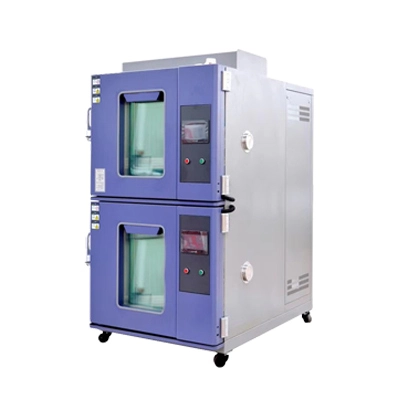

Double Layer Battery Temperature Cycling Test Chamber
Double Layer Battery Temperature Cycling Test Chamber
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1300*1570*1950mm
Power supply source: three-phase, 415V±10%, 50Hz
Gross Weight: 400kg
HS Code: 8479899990
STANDARD FEATURES
Model | HD-E702-408B20 |
Internal dimension (W*D*H) | 600*800*850mm |
External dimension (W*D*H) | 1100*1370*1750mm |
Temperature range | -20~+120℃ |
Temperature fluctuation | ±0.5℃ |
Temperature uniformity | 2℃ |
Cooling speed | 1℃/min in average (without loading) |
Heating speed | 3℃/min in average (without loading) |
Internal chamber material | |
External chamber material | Stainless steel |
Cooling method | Air cooling |
Controller | LCD touch screen, programmable control temperature Can set different parameter for cyclic test |
Insulation material | 50mm high density rigid Polyurethane foam |
Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
Compressor | France Tecumseh compressor |
Lighting | Heat resistance |
Temperature sensor | PT-100 dry and wet bulb sensor |
Observation window | Tempered glass |
Testing hole | Diameter 50mm, for cable routing |
SUS#304 stainless steel, 2pcs | |
Safety protection device | Over-temperature Compressor over-voltage and overload Heater short circuit |
APPLICATIONS
1. To simulate test environment with different temperature.
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
PROGRAMMABLE CONTROLLER
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
