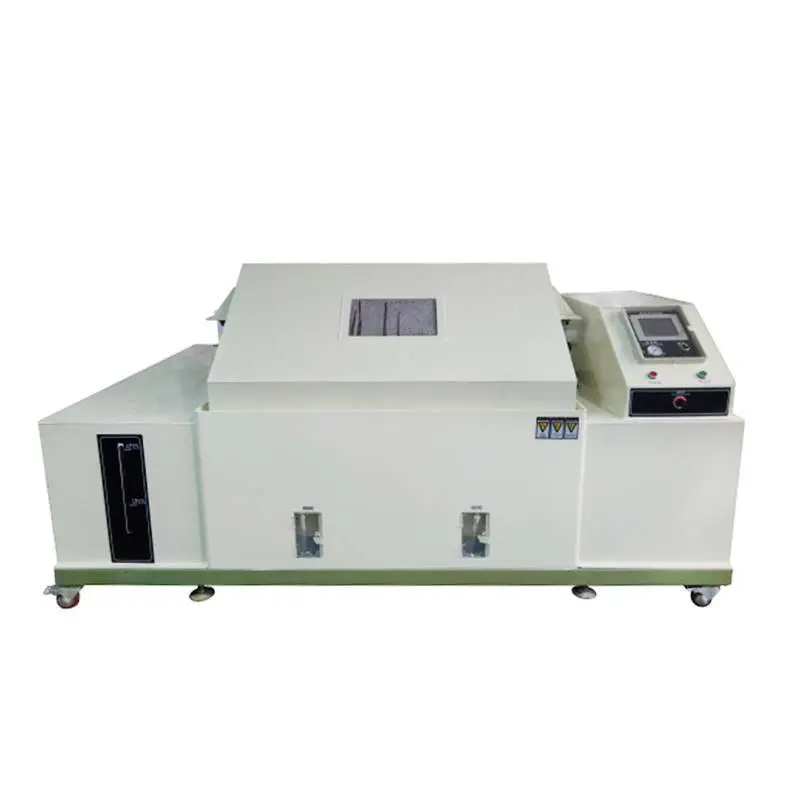

HD-E808-160-1 Cyclic Salt Spray Chamber
Cyclic Salt Spray Chambers
Cycle Salt Spray Chamber Video
Product Description:
Cycle Salt Spray Chamber can be used to test the salt fog resistant performance of materials, products and their coatings. Such as, parts, electronic components, metal materials of protective layer and industrial products. They can also be used to evaluate the quality of the coatings.
The Use
Cycle Salt Spray Chamber can perform multiple tests, including: Salt Fog, Heating and Cooling, Humidity, Drying.The tests are programmable. You can set the test procedures according to your requirements.
Standard Parameters
Model | HD-E808-160-1 |
Internal size (L*W*H) | 1600*1000*600mm |
External size (L*W*H) | 3000*1650*1700mm |
Equipment material | Both inside & outside shell adopt P.V.C rigid plastic board |
Temperature range | Ambient~60℃ (No humidity if temp. below +25℃) |
Temperature fluctuation | ±2℃ |
Humidity range | 30% - 98% |
Temperature fluctuation | ±3%RH |
Salt spray test | Concentration of salt solution: 5% Spray quantity: 1.0~2.0 ml / hr / 80cm2 PH value: 6.5~7.2 (at ambient temperature) |
Spraying method | Continuous and Periodic spray type |
Lab volume | 960L |
Brine tank capacity | 40L |
Multiple safety protection devices | Over pressure protection, over temperature protection, over load fuse protection |
Air source | 2.5HP Air pump, pump capacity with 60L or above (provided by buyer) |
Power supply source | Single-phase, 220V±10%, 50/60Hz |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
Chamber Material
Item | Specification |
Internal chamber | High temperature resistant 8mm PVC, anti-corrosion and easy to clean |
Chamber cover | High temperature resistant 10mm PVC |
Saturated barrel | Imported 8mm PP impact resistance plate, high temperature and corrosion resistance, equipped with water level indicating device |
Heating system | Titanium electric heater, corrosion resistance |
Blower | Multi-blade blower |
Water pump | Corrosion resistant pump |
Solenoid valve | JPA series |
Sample shelves | Test Angle: 15 ° - 30 °, adjustable |
Viewing window | Double vacuum organic glass |
Controller | PLC controller, touch screen |
Water supply | Adopts automatic water charging system for long time operation. |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
Product Features
1, Double layers sample placing design to improve the usable area of internal chamber.
2, Adopt high precision temperature and humidity controller for temperature, humidity and drying tests.
3, Two poles air inlet decompression to ensure stable spray pressure.
4, Spray tower has conical disperser to lead and adjust the uniformity and dripping volume of salt fog.
5, Perfect safety protection device with audio alarm and auto stop function.
6, Have saturate process for spray compressed air to ensure stable test environment and prevent nozzles from block.
7, With time controller for auto power off when setting time arrive.
Cyclic Salt Spray Chamber Details
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equipment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
