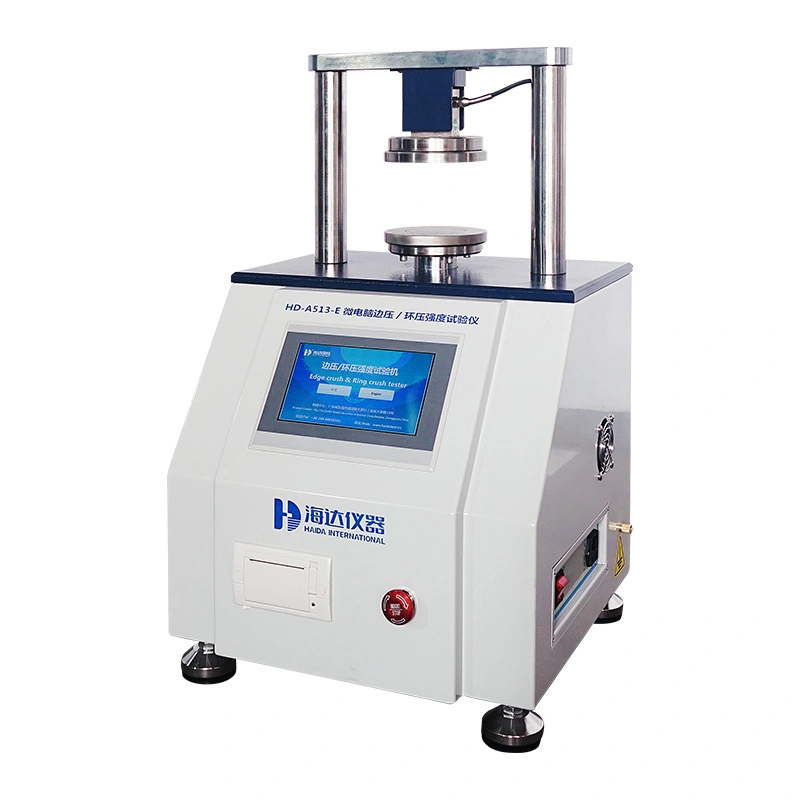

PLC Control Crush Strength Test Machine

Model:

HD-A513-E

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Delivery:

15 days after order.

Inquiry

Write a Review

Product Description

The Crush strength test machine is designed as a robust, easy to-use instrument. Exactly what you need when performing crush tests. It is used to conduct Edge Crush test(ECT), Ring Crush Test(RCT), Flat Crush Test(FCT), Pin Adhesive Strength Test(PAT) for paper and paperboard or corrugated board, and flat crush strength (CMT) & CCT (vertical crush strength) of lab corrugating medium. The accuracy is achieved with a precision load cell, which is even accurate at low force values.

Product Specifications

Our specialists can help you find the perfect PLC Control Crush Strength Test Machine.

Item	Description
Max. Capacity	200kg(2KN)
Sensor	Load cell force sensor
Measuring units	Kgf, Ibf, N
Control mode	Touch screen control
Load Resolution	1/250,000
Load accuracy	Within ± 0.5%
Max. Resolution	0.02N
Result Output	Mini-printer (thermal printer)
Test speed	(12 ± 0.5) mm/min
Plate Diameter	φ120mm
Plate Stroke	0.1~80mm
Platen Parallelism	≤0.06mm
Statistics	Mean value, max. & min values of the series
Power	Single Phase 220V, 220W
Dimension&Weight	400mm × 400mm × 650mm
Weight	40kg
Options	ECT sample cutter & holder
	RCT sample cutter & holder
	PAT sample cutter & holder
	FCT sample cutter & holder
	Force Calibration indicator

Products Advantages

The crush resistance tester offers precise testing with durable fixtures, ensuring reliable results. It helps customers assess material strength, improve product quality, and meet industry standards efficiently.

PLC Control Crush Strength Test Machine 3

📊Accurate Measurement

Provides precise compressive strength readings, ensuring reliable data for material quality control and product testing.

PLC Control Crush Strength Test Machine 4

🖥️User-Friendly Operation

Designed with an intuitive interface and easy-to-navigate controls, making it accessible to both novice and experienced users.

PLC Control Crush Strength Test Machine 5

🎯High Precision & Reliability

Advanced sensors and systems ensure consistently accurate results with minimal deviation, enhancing test reliability.

PLC Control Crush Strength Test Machine 6

⏱️Fast and Efficient Testing

Delivers quick test results, optimizing throughput and reducing time spent on each test for increased productivity.

Main Accessories

It is used to conduct Edge Crush test(ECT), Ring Crush Test(RCT), Flat Crush Test(FCT), Pin Adhesive Strength Test(PAT) for paper and paperboard or corrugated board.

PLC Control Crush Strength Test Machine 7

ECT – Edge Crush Test

ECT – Edge Crush Test. A sample of corrugated board is subjected to increasing force, Parallel to the flutes until it breaks. The ECT value is expressed as the breaking force is divided by the sample’s width.

PLC Control Crush Strength Test Machine 8

RCT – Ring Crush Test

RCT –Ring Crush Test. to a certain size in the sample (corrugated paper)within a circular formation, between the upper and lower clamp pressure, can bear the most energetically before the sample is crushing.

PLC Control Crush Strength Test Machine 9

PAT – Pin Adhesion Test

PAT – Pin Adhesion Test. Adhesion resistance is the maximum force required to separate the linerboard from the fluting with the help of a special sample holder.

PLC Control Crush Strength Test Machine 10

FCT – Flat Crush Test

FCT – Flat Crush Test. A sample of corrugated board is subjected to increasing force, applied perpendicular to the surface of the board, until the fluting breaks. The FCT value is expressed as the force divided by the samples surface area.
